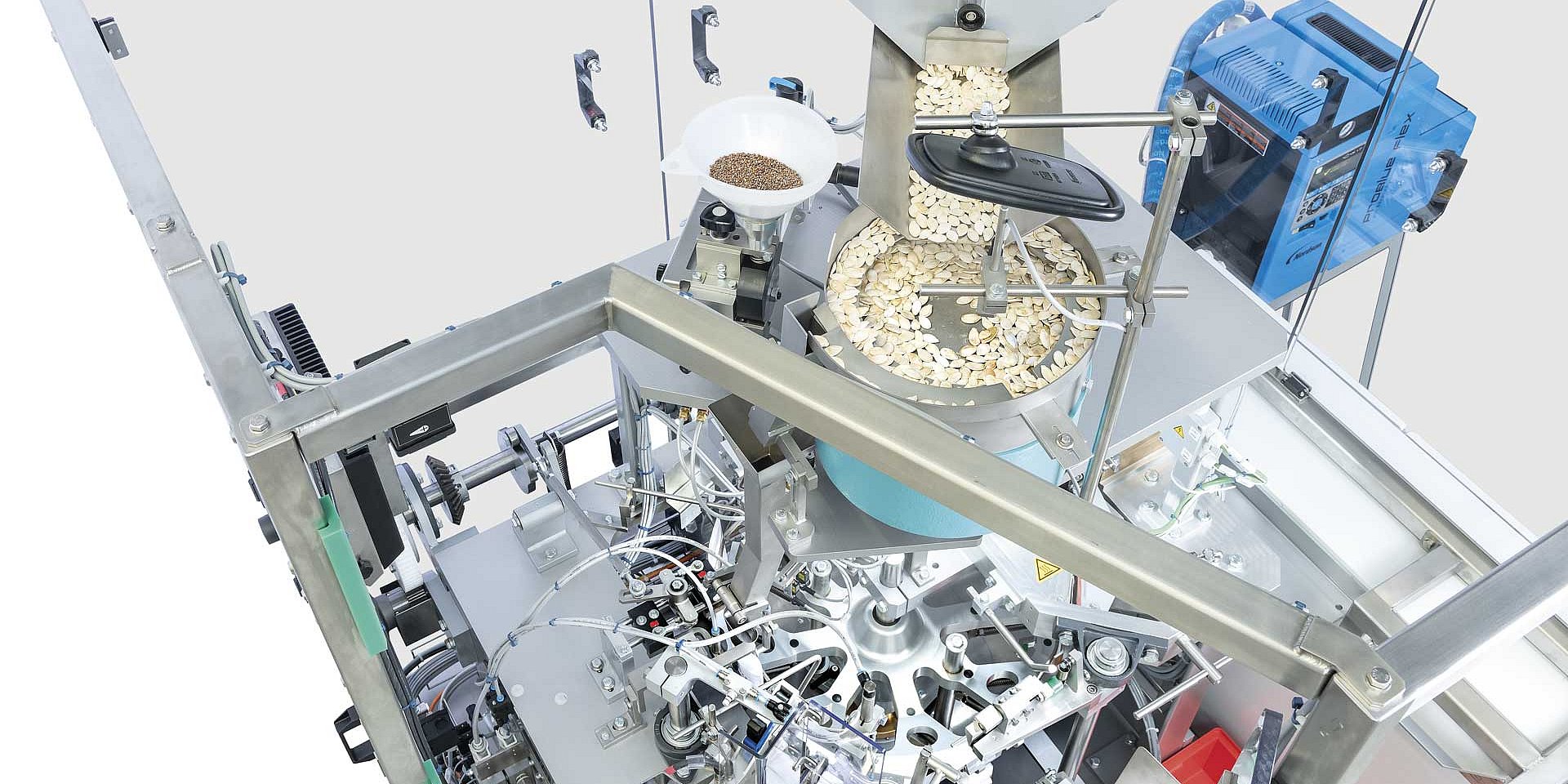

Our M 40 horizontal pouch packaging machine is a simple and flexible machine from the Seed Series. Designed for gentle seed filling into prefabricated pouches, it is ideal for flexible production runs with frequent product changes. Thanks to the integration of several seed dosing units, product changes can be carried out in just a few minutes and largely without tools. It is also very powerful, with an output of up to 85 pre-made pouches per minute.
Of course, the qualitative and efficient processing of recyclable packaging materials, such as mono-materials made of plastic or paper, is possible.
Pouch size width
30 – 150 mm
Pouch size length
70 – 220 mm
Max. machine output
up to 85 pouches/min.
Power consumption
ca. 2,0 kVA
Electricity supply
400V, 3PH + N + PE, 50 HZ
Air consumption
ca. 150 Nl/min, 6 bar
Machine dimensions L x W x H
ca. 1.450 x 2.000 x 2.050 mm
(Data depending on configuration, filling characteristics, and pouch size)
Standard equipment
- Main drive via frequency-controlled three-phase motor with indexing gearbox
- Low-noise and low maintenance by toothed belt drive
- Solid framework in lacquered execution
- Switch cabinet on the machine
- Swivel-type control panel 7“(Touch Panel)
- Electronic camshaft by SPS
- Pressure-vacuum system (venturi principle)
- Sachet magazine
- Conveyor belt with three-phase motor and flat belts, 1.500 mm long
- Modem for remote maintenance based on MB Connect (ethernet + cable)
(further details on request)
Contact
We are happy to support you in your pouch packaging project with customized machine and dosing technology.
We look forward to your inquiry.
Phone: +49 2267 699-0
Email: sales@sn-packaging.de
