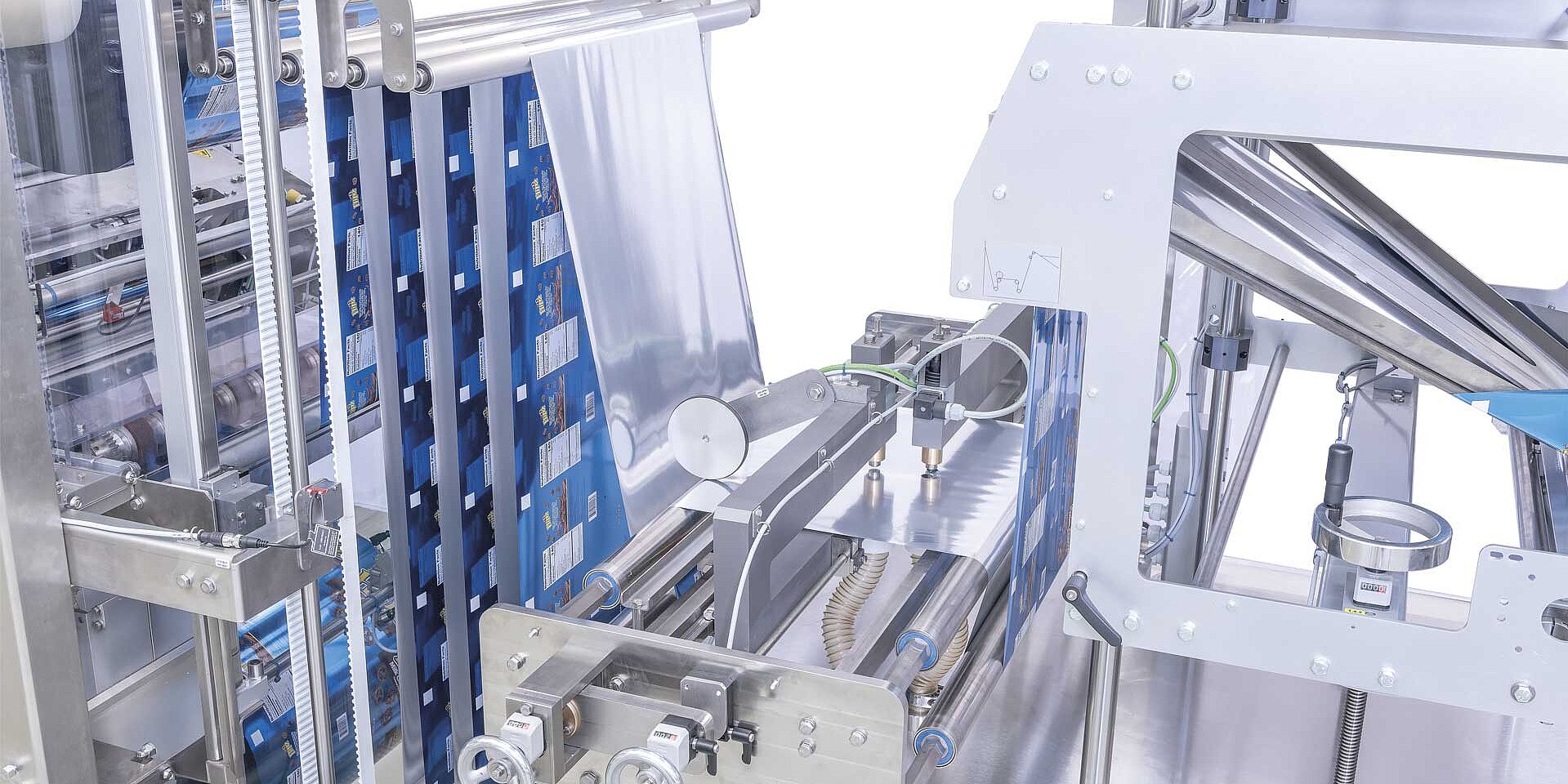

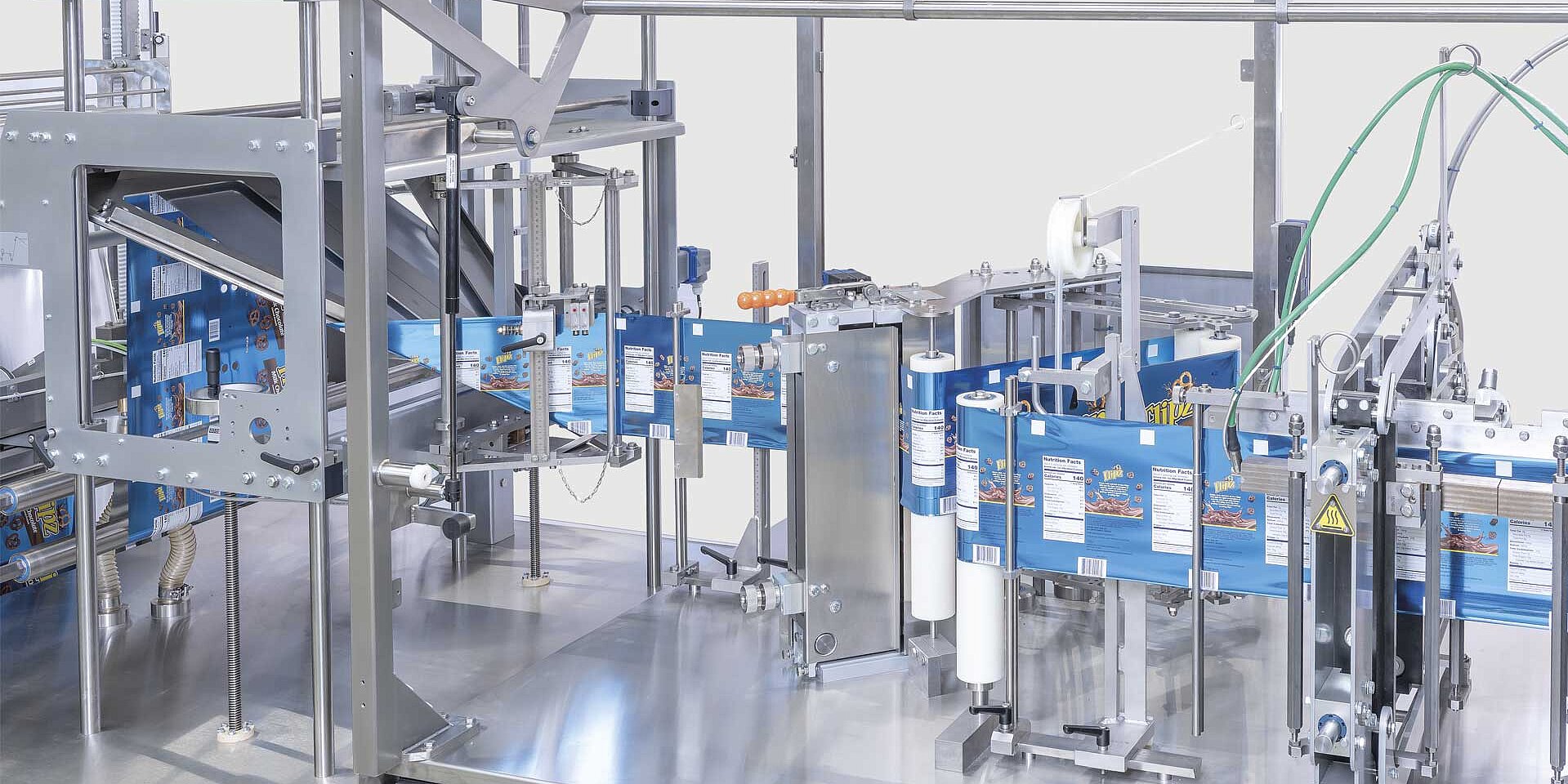

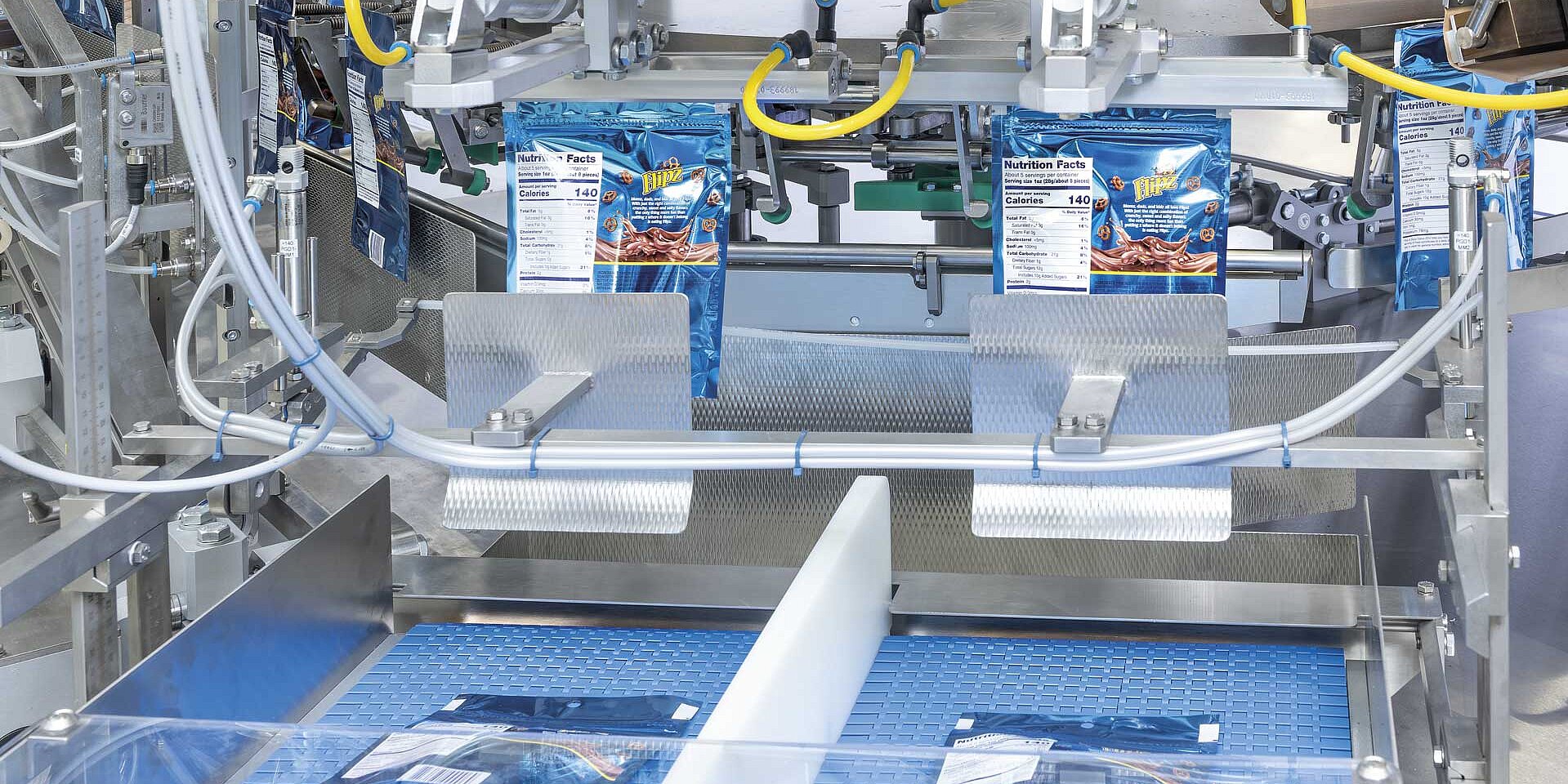

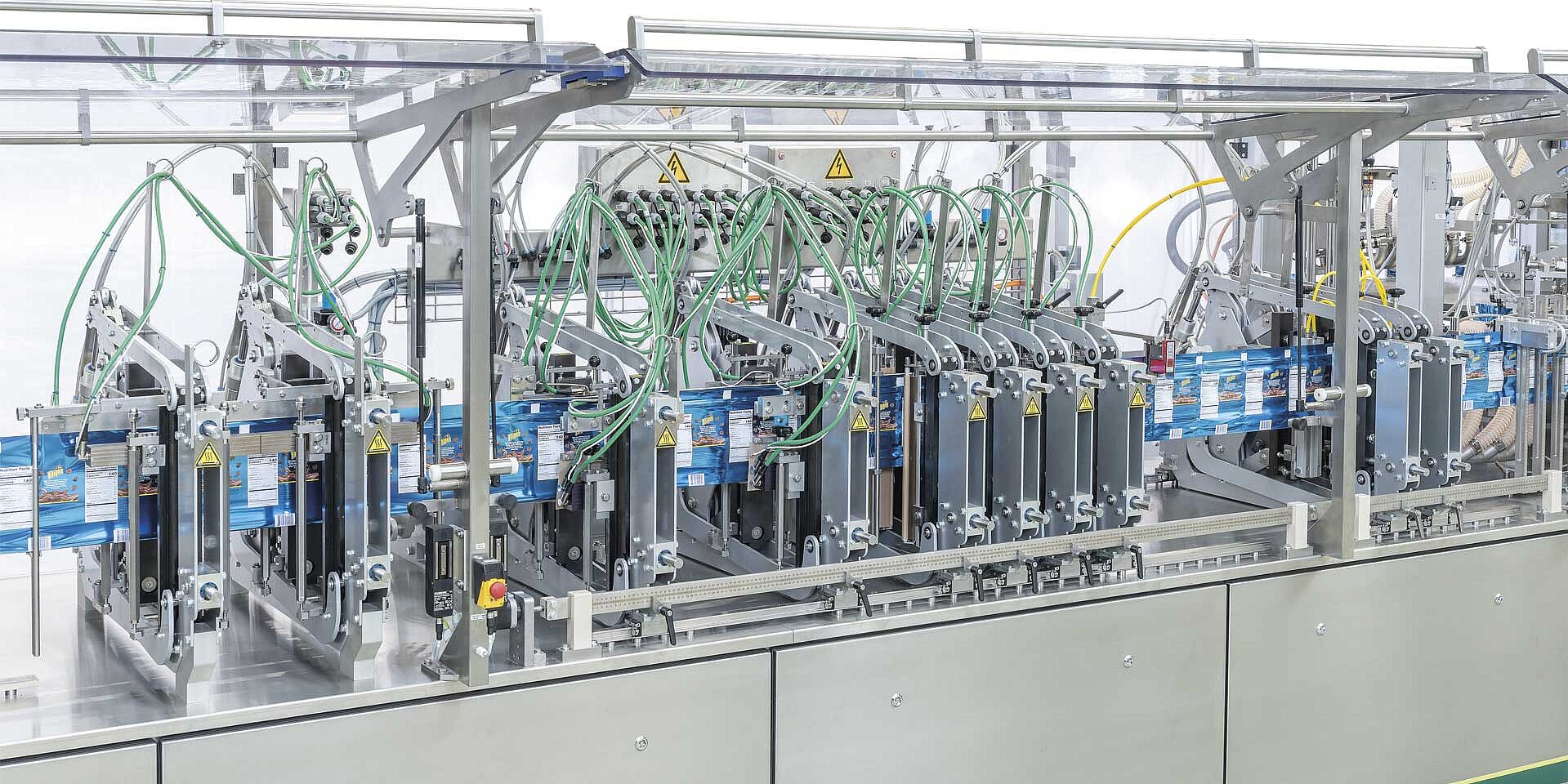

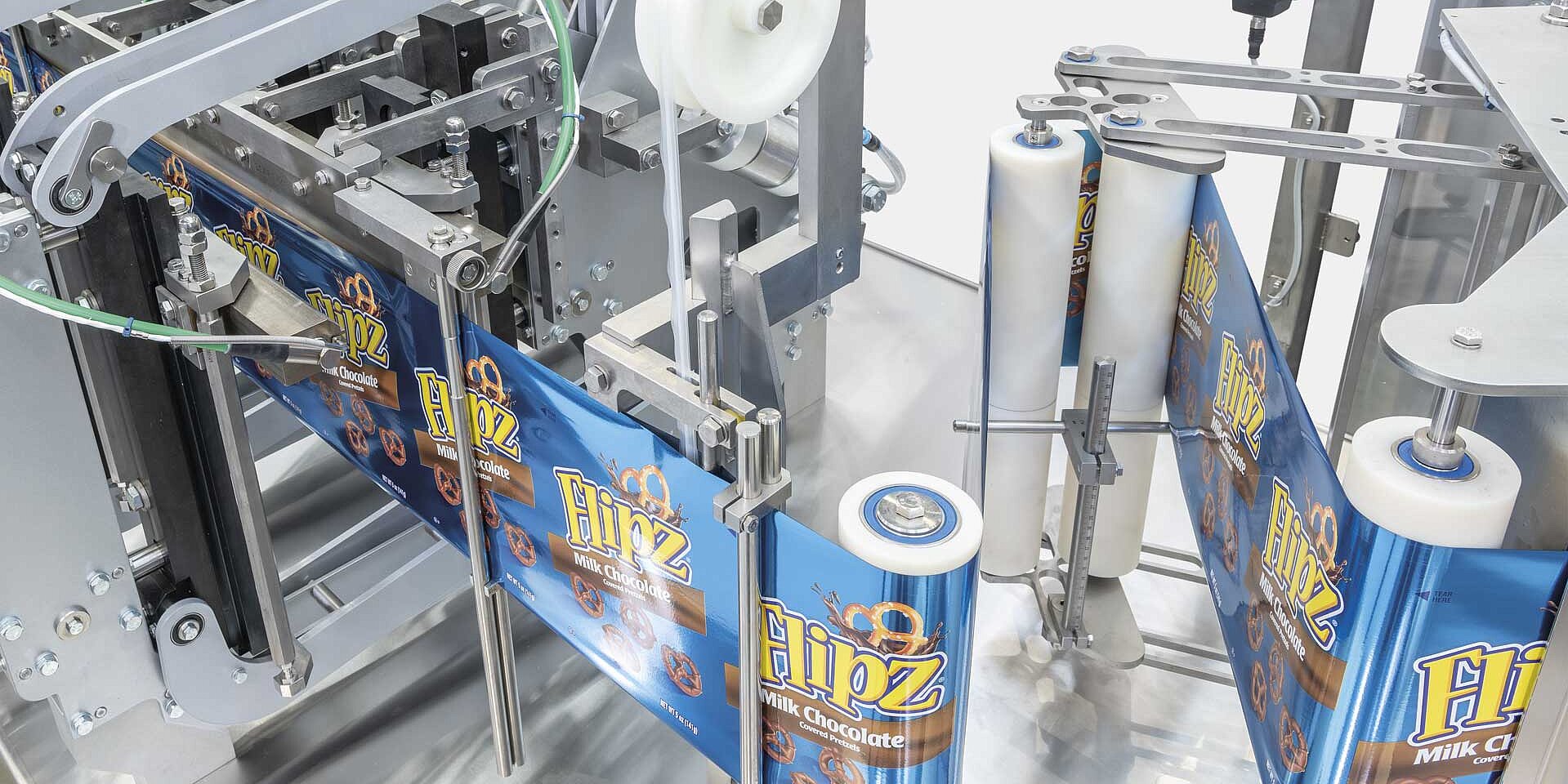

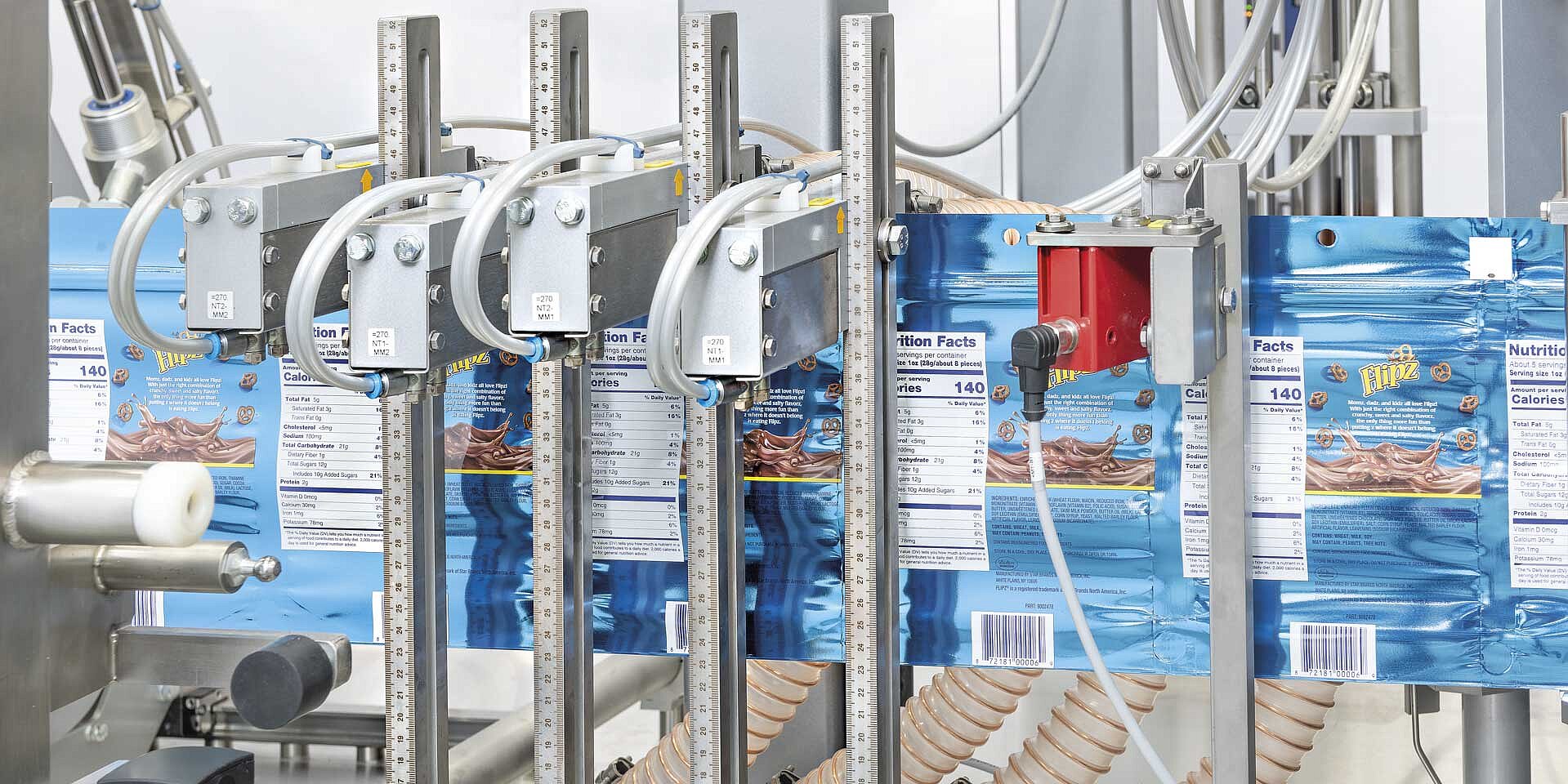

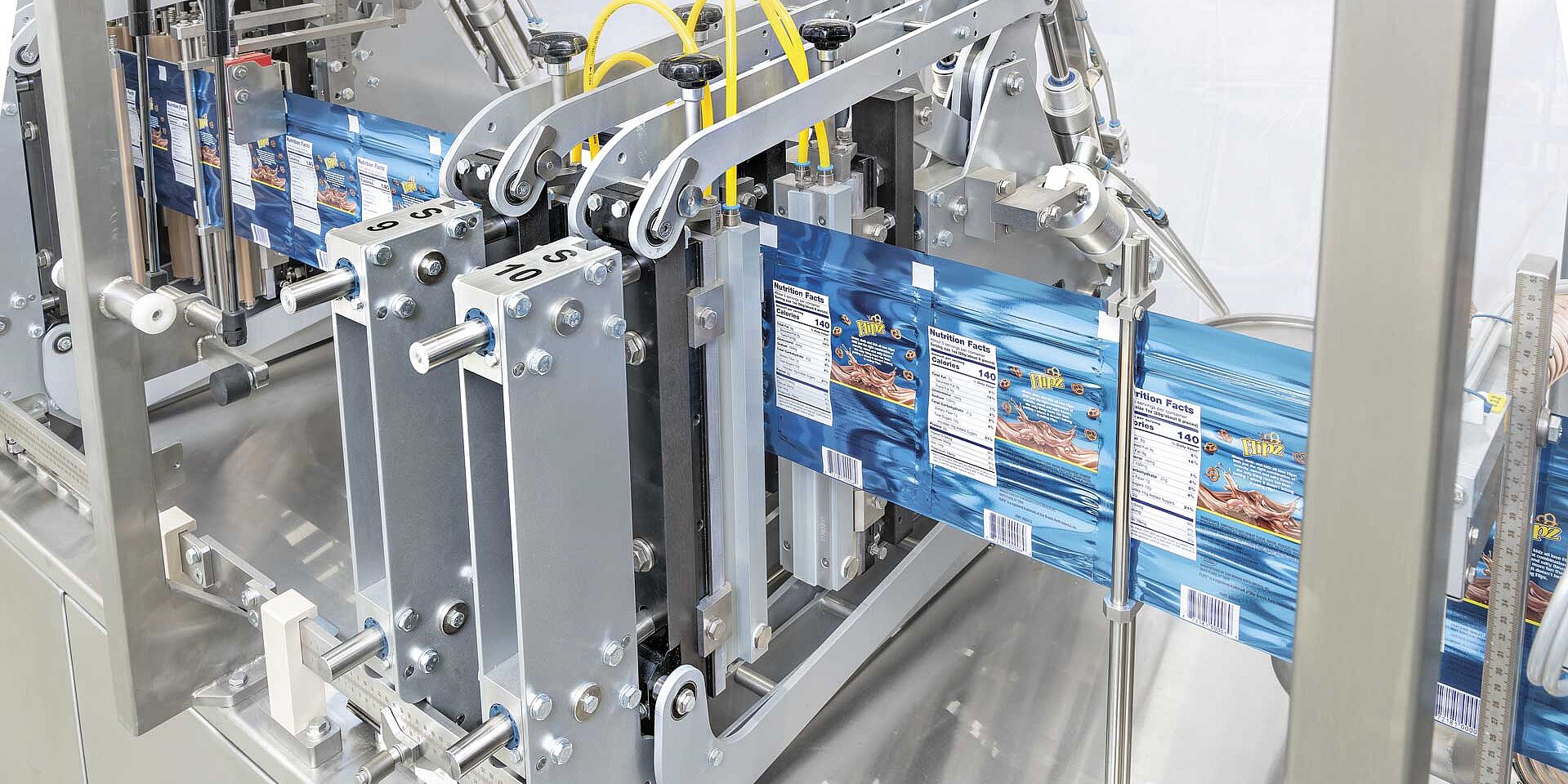

Pouch packaging machine FM 200

Powerful, fast, and customizable

Our FM 200 horizontal pouch packaging machine is a powerful and customizable Professional Series machine. With a wide pouch format range and duplex operation, it is ideal for medium performance ranges of up to 180 pouches per minute. It can be individually adapted to your requirements and designed for wet operation.

Of course, it is possible to process recyclable packaging materials, such as mono-materials made of plastic or paper, qualitatively and efficiently.

FM 200

Horizontal form, fill, and seal machine (HFFS) of the Professional Series

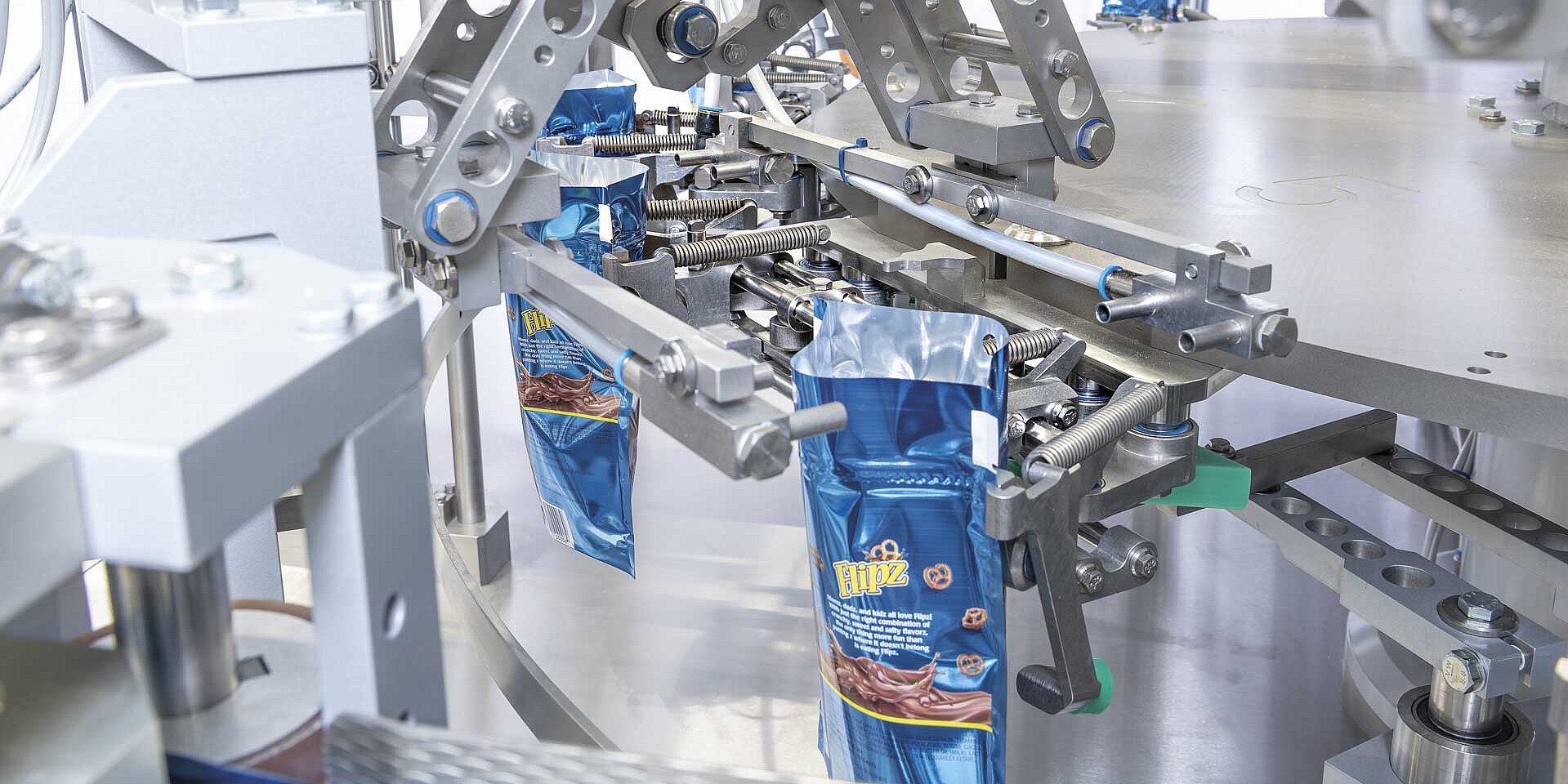

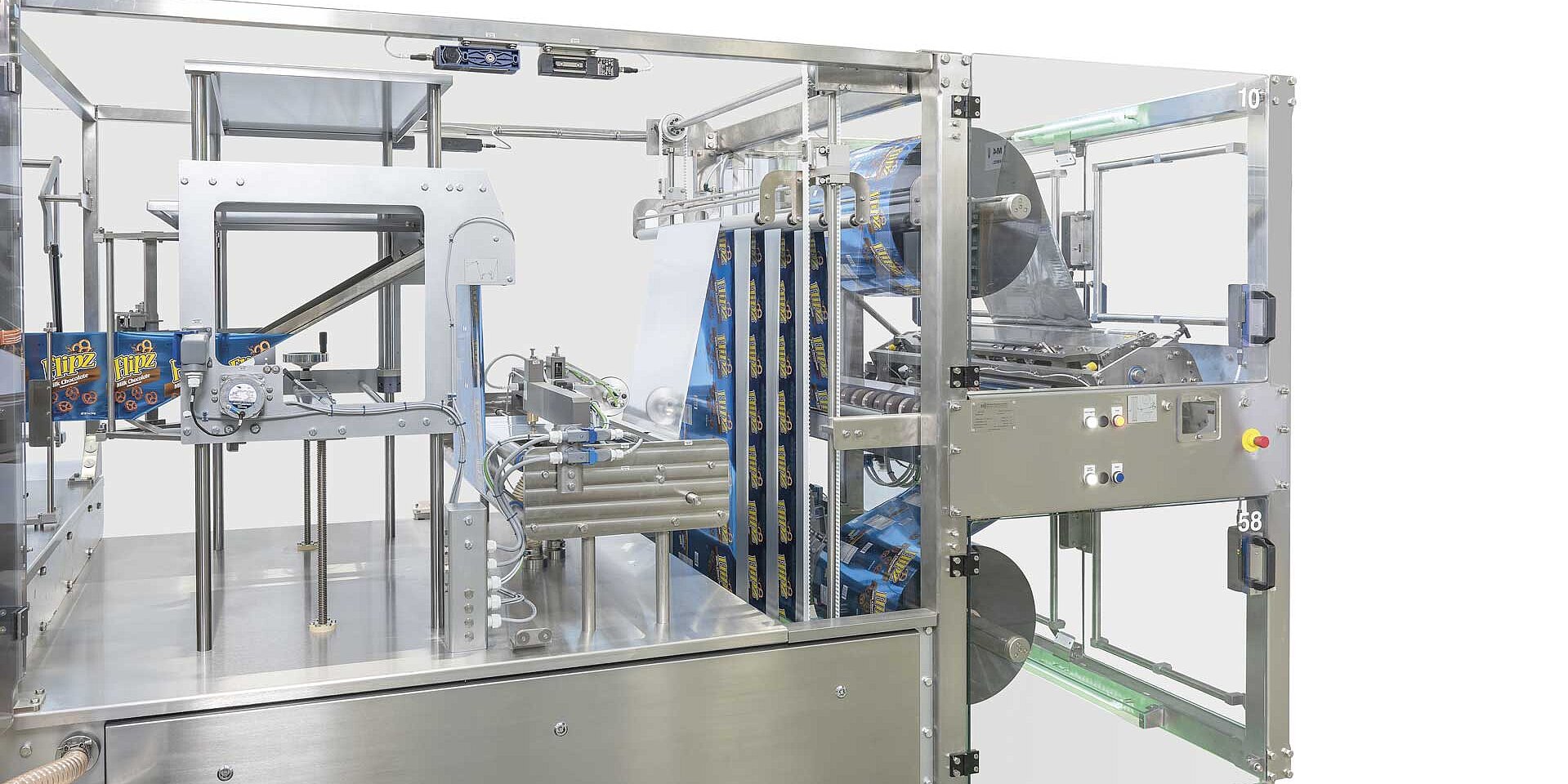

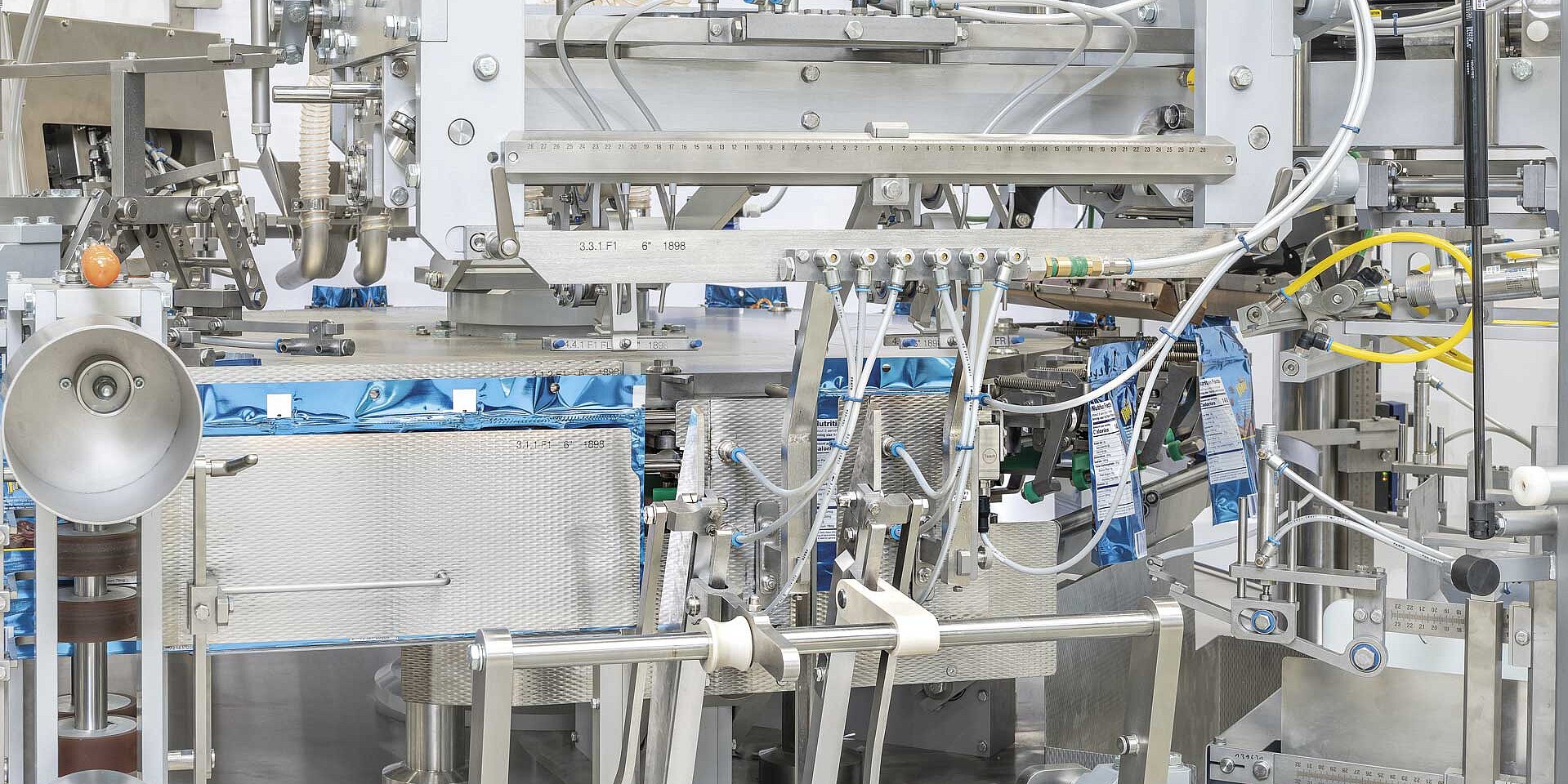

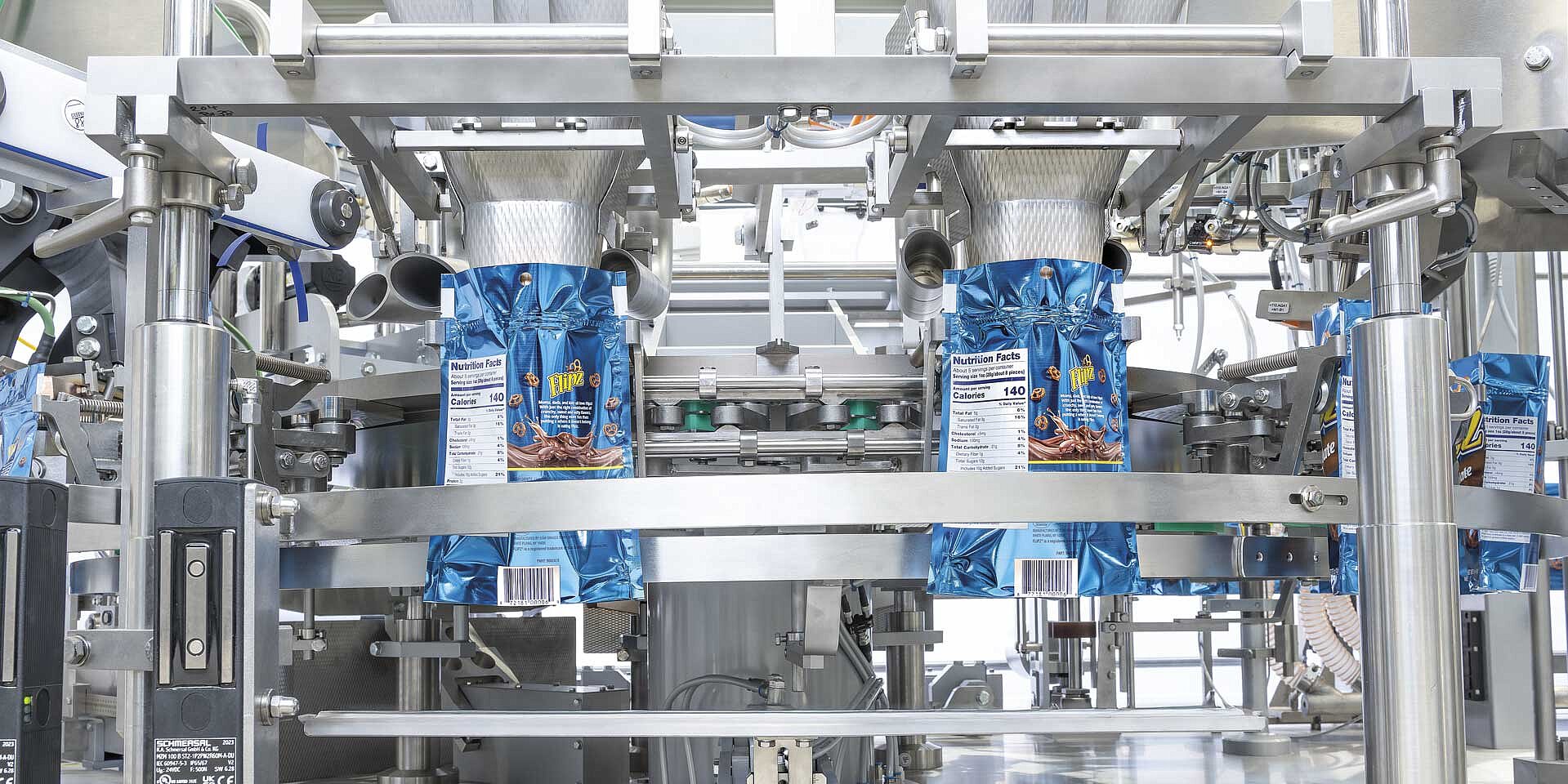

Intermittent working rotary machine with eight stations for forming, filling, and sealing flat or stand-up pouches from the roll.

Pouch types

3-side or 4-side sealed pouches, bottom fold type pouches, stand-up pouches, double flat pouches, membrane pouches

Application range

dry food, liquid food, pet food, pharmaceuticals, cosmetic & personal care, non-food

Technical details

Duplex

Pouch size width
100 – 299 mm

Pouch size length
120 – 350 mm

Max. machine output
up to 180 pouches/min.

Power consumption
ca. 10 – 30 kVA

Electricity supply
3 x 400/230V + N + PE, 50/60 HZ

Air consumption
ca. 1.000 - 1.500 Nl/min, 6 bar

Machine dimensions L x W x H
ca. 4.900 x 2.400 x 2.200 mm

(Data depending on configuration, filling characteristics, and pouch size)

Standard equipment
  • Pouch control (no pouch - no filling)
  • Cutting and gluing table
  • Film guidance
  • Motor-driven roll lifting unit
  • Centralized operation and convenient process control
  • Control: SPS Siemens or Allen Bradley
  • Teleservice

(further details on request)

Optional equipment
  • Rotary table extension from 8 to 10 stations
  • Coding facilities
  • Wash down construction
  • Ultrasonic technology
  • Reclosure systems
  • Recipe management
  • Mirror design (left-hand version)
  • Gas flushing with nitrogen

(further details on request)

Download
Machine details

Contact

We are happy to support you in your pouch packaging project with customized machine and dosing technology.

We look forward to your inquiry.
