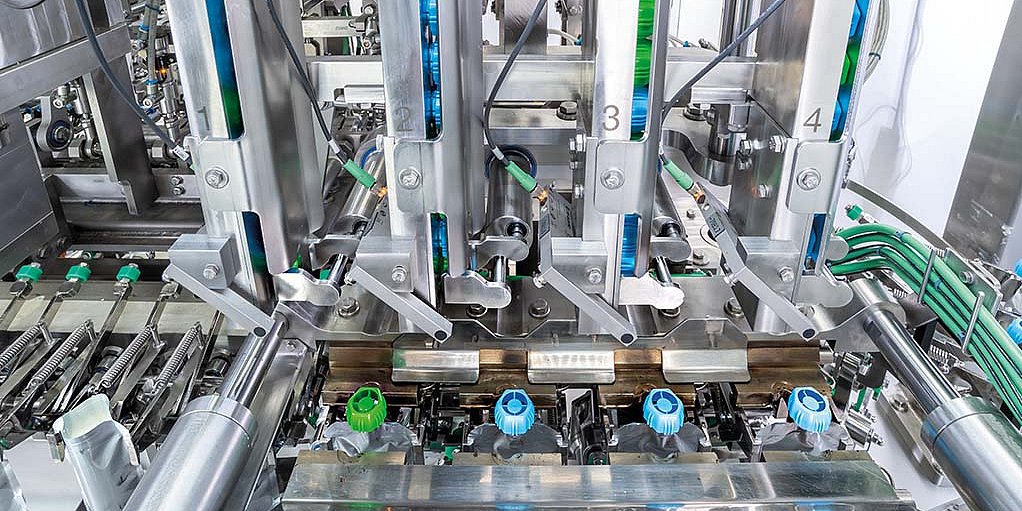

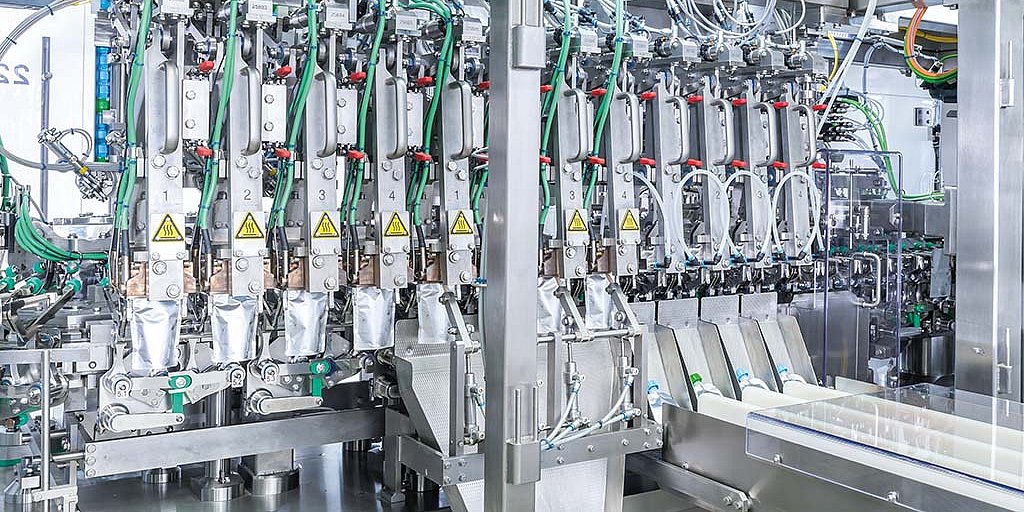

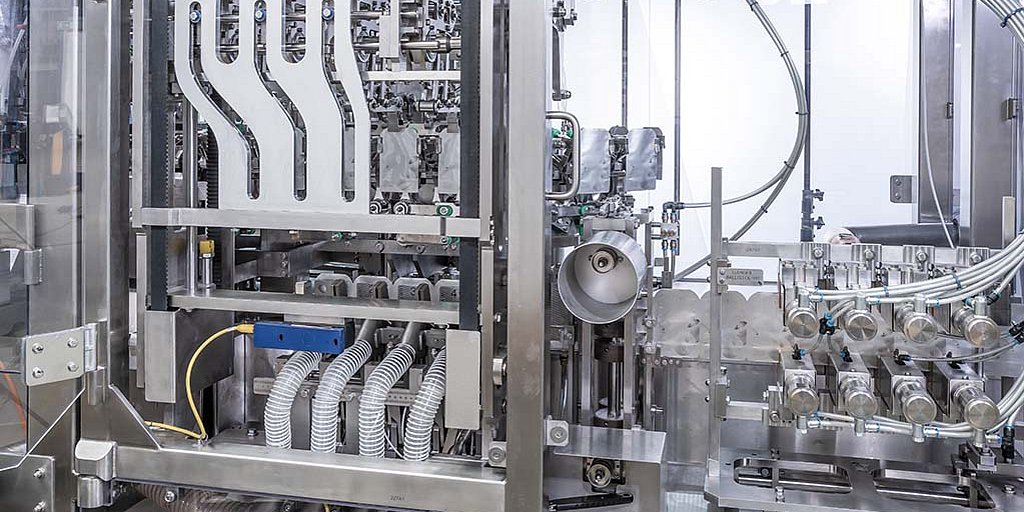

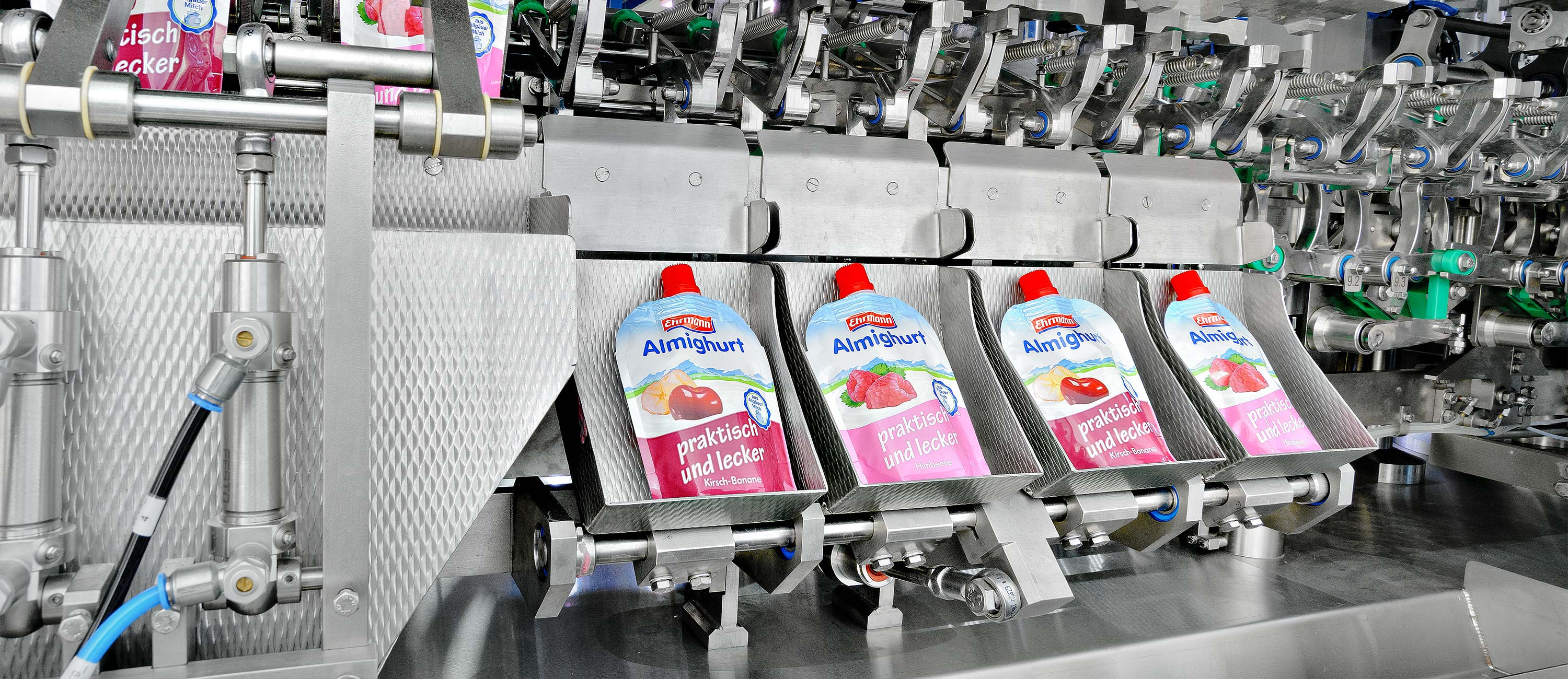

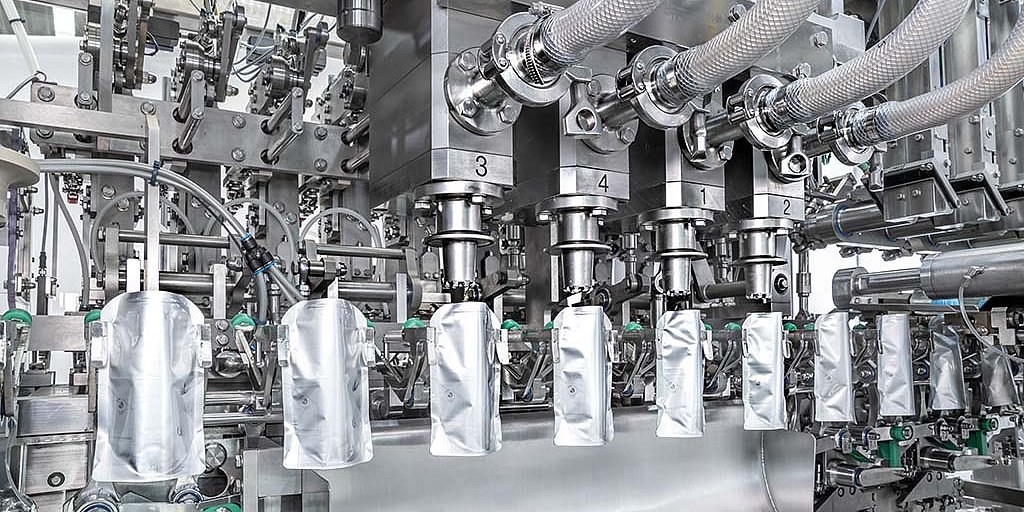

The LMS 124 of the spout series is ideally suited for producing stand-up pouches with center spouts and filling liquids. The quadruplex design offers the best conditions for high output rates of up to 220 pouches per minute in continuous production in three-shift operation.
The qualitative and efficient processing of recyclable packaging materials, such as mono materials, is possible.
Pouch size width
50 – 100 mm
Pouch size length
80 – 250 mm
Max. machine output
up to 220 pouches/min.
Power consumption
ca. 7,5 – 10 kVA
Electricity supply
3 x 400/230V + N + PE, 50/60 HZ
Air consumption
ca. 800 Nl/min, 6 bar
Machine dimensions L x W x H
ca. 4.800 x 1.950 x 2.200 mm
(Data depending on configuration, filling characteristics, and pouch size)
