Pouch packaging machine HFS 300

Powerful, flexible and customizable

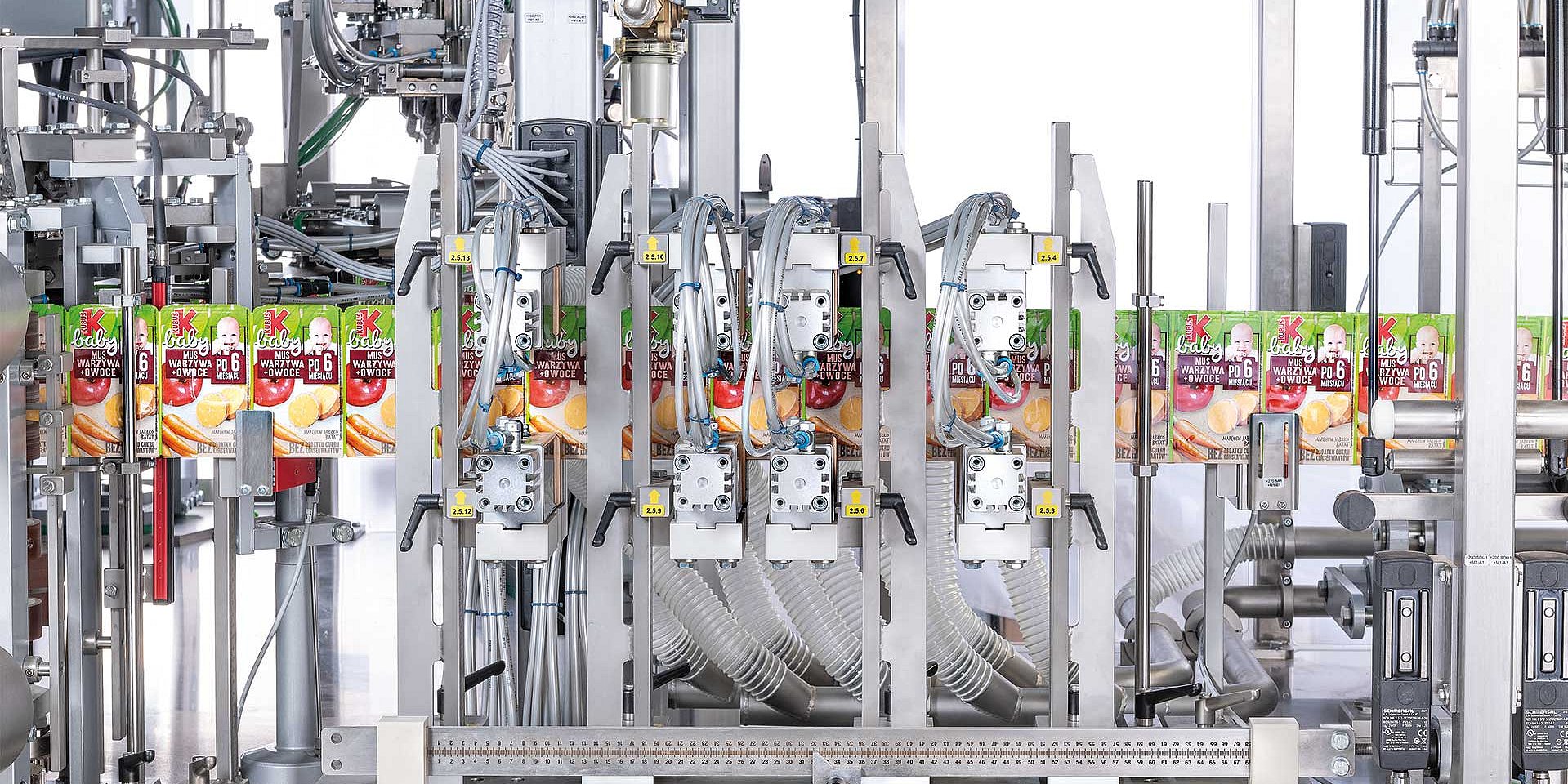

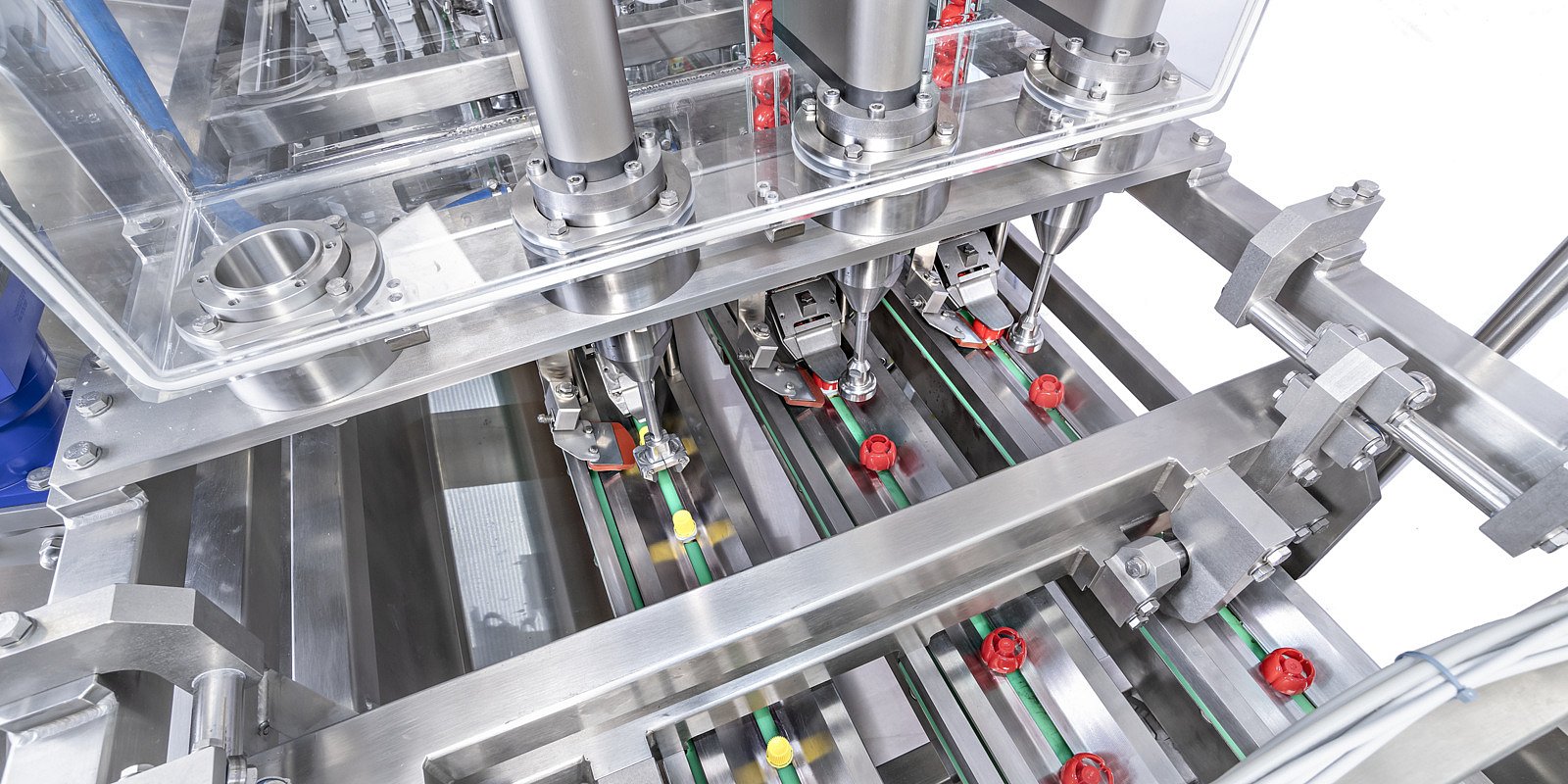

The HFS 300 of the spout series is ideally suited for producing spouted pouches and filling liquids. The separation of pouch production and pouch filling prevents contamination, particularly in the spout area. In addition, a significantly higher filling level can be achieved in the pouch by filling through the spout. The triplex version offers the best conditions for medium to high output rates of up to 180 pouches per minute.

The qualitative and efficient processing of recyclable packaging materials, such as mono materials, is possible.

HSF 300

Horizontal form, fill and seal machine (HFFS) spout series

Intermittent working rotary machine for forming flat or stand-up pouches with a center spout and filling through the spout.

Pouch types

3-side or 4-side sealed pouches, stand-up pouches with center spout

Application range

liquid food, pet food, pharmaceuticals, cosmetic & personal care, non-food

Technical details

Triplex

Pouch size width
80 – 120 mm

Pouch size length
120 – 250 mm

Max. machine output
up to 180 pouches/min.

Power consumption
ca. 11 – 14 kVA

Electricity supply
3 x 400/230V + N + PE, 50/60 HZ

Air consumption
ca. 1.500 Nl/min, 6 bar

Machine dimensions L x W x H
ca. 4.800 x 1.950 x 2.200 mm

(Data depending on configuration, filling characteristics, and pouch size)

Standard equipment

Servo motor sealing drives
Automated monitoring of pouch quality parameters
Buffer for continuous filling (e.g. during film reel change)
Reduced space requirement due to spout and cap supply via platform above the machine
Pouch control (no pouch or no spout = no filling)
Optimal accessibility for inspection and cleaning tasks
Remote service

(further details on request)

Optional equipment

Sensor-monitored and visual control and documentation of pouch and spout geometry (automated)
Contoured pouch shapes
Quick change device for sealing caps
Coding devices

(further details on request)
