Pouch packaging machine FBM 44

Powerful, fast, and customizable

Our FBM 44 horizontal pouch packaging machine is a powerful and customizable Professional Series machine. With a limited pouch format range and quadruplex operation, it is ideal for long production runs and output ranges of up to 400 pouches per minute. It can be individually adapted to your requirements and designed for wet operation.

Of course, it is possible to process recyclable packaging materials, such as mono-materials made of plastic or paper, qualitatively and efficiently.

FBM 44

Horizontal form, fill, and seal machine (HFFS) of the Professional Series

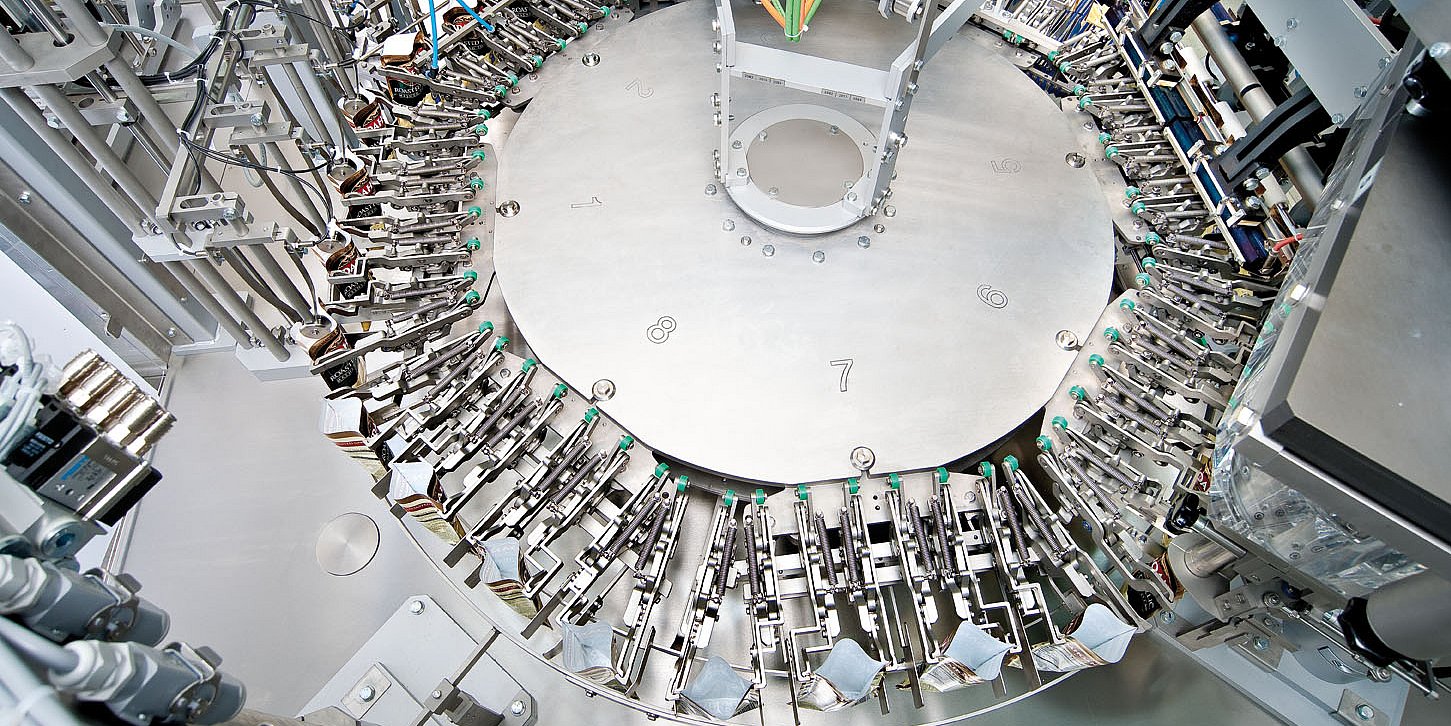

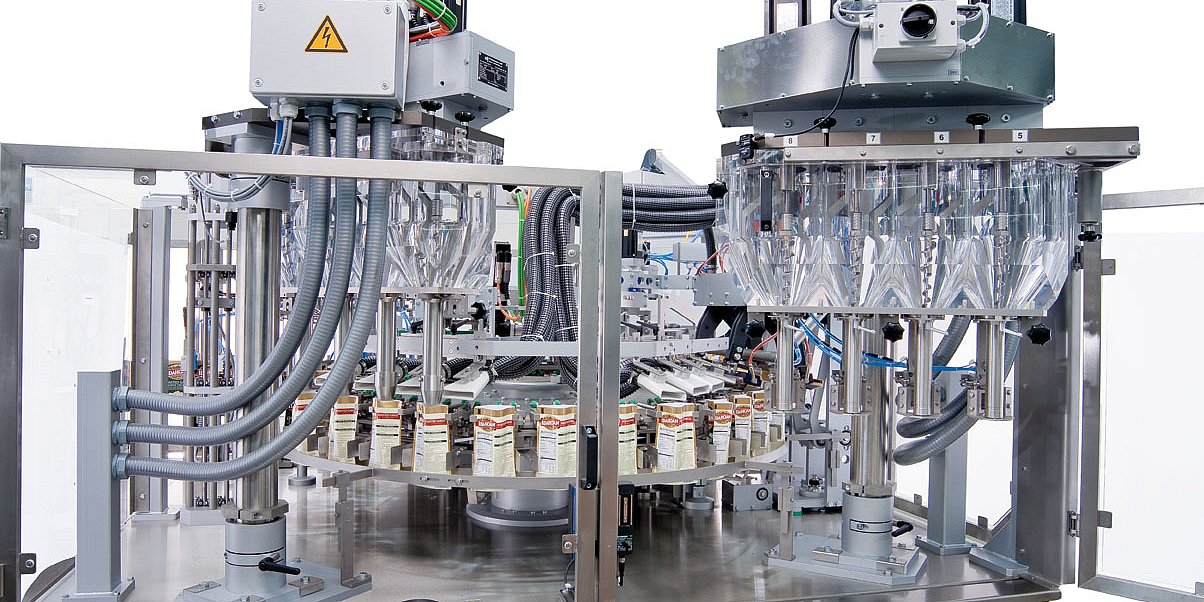

Intermittent working rotary machine with eight stations for forming, filling, and sealing flat or stand-up pouches from the roll.

Pouch types

3-side or 4-side sealed pouches, bottom fold type pouches, stand-up pouches, double flat pouches, membrane pouches

Application range

dry food, liquid food, pet food, pharmaceuticals, cosmetic & personal care, non-food

Technical details

Quadruplex

Pouch size width
70 – 93 mm

Pouch size length
80 – 210 mm

Max. machine output
up to 400 pouches/min.

Power consumption
ca. 15 – 20 kVA

Electricity supply
3 x 400/230V + N + PE, 50/60 HZ

Air consumption
ca. 500 Nl/min, 6 bar

Machine dimensions L x W x H
ca. 6.100 x 2.350 x 2.200 mm

(Data depending on configuration, filling characteristics, and pouch size)

Standard equipment
  • Pouch control (no pouch - no filling)
  • Cutting and gluing table
  • Film guidance
  • Motor-driven roll lifting unit
  • Centralized operation and convenient process control
  • Control: SPS Siemens or Allen Bradley
  • Teleservice

(further details on request)

Optional equipment
  • Coding facilities
  • Wash down construction
  • Ultrasonic technology
  • Reclosure systems
  • Recipe management
  • Mirror design (left-hand version)
  • Gas flushing with nitrogen

(further details on request)
