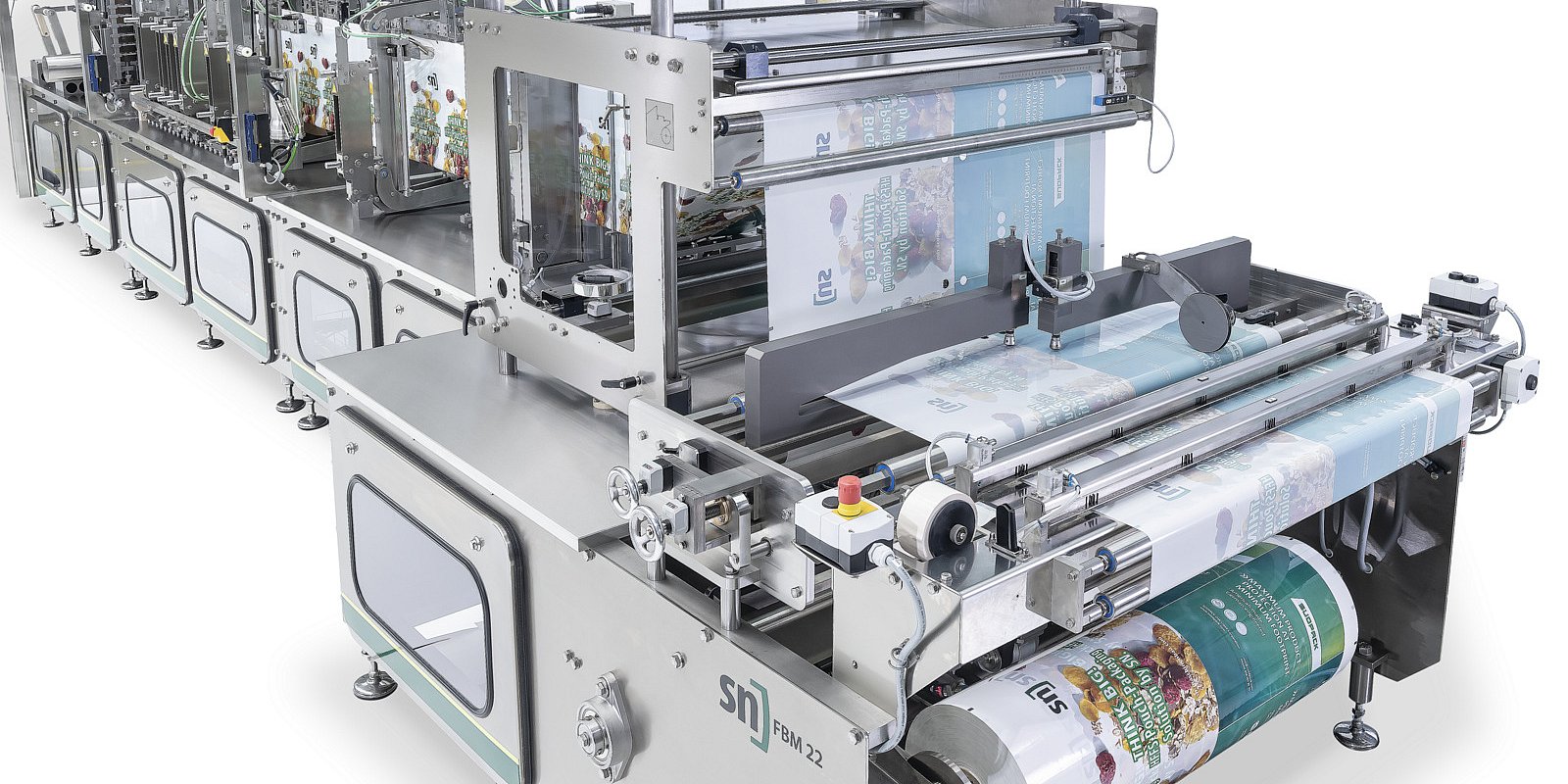

Our FBM 22 horizontal pouch packaging machine is a flexible and customizable Professional Series machine. With one of the largest pouch format ranges and the ability to work in simplex and duplex, it is ideal for a wide range of applications and output ranges of up to 200 pouches per minute. It can be individually adapted to your requirements and designed for wet operation.
Of course, it is possible to process recyclable packaging materials, such as mono-materials made of plastic or paper, qualitatively and efficiently.
Application range
dry food, liquid food, pet food, pharmaceuticals, cosmetic & personal care, non-food
Pouch size width
120 – 350 mm
Pouch size length
100 – 350 mm
Max. machine output
up to 100 pouches/min.
Power consumption
ca. 15 - 20 kVA
Electricity supply
3 x 400/230V + N + PE, 50/60 HZ
Air consumption
ca. 600 Nl/min, 6 bar
Machine dimensions L x W x H
ca. 6.100 x 2.050 x 2.200 mm
(Data depending on configuration, filling characteristics, and pouch size)
Pouch size width
120 – 190 mm
Pouch size length
100 – 350 mm
Max. machine output
up to 200 pouches/min.
Power consumption
ca. 15 - 20 kVA
Electricity supply
3 x 400/230V + N + PE, 50/60 HZ
Air consumption
ca. 600 Nl/min, 6 bar
Machine dimensions L x W x H
ca. 6.100 x 2.050 x 2.200 mm
(Data depending on configuration, filling characteristics, and pouch size)
Contact
We are happy to support you in your pouch packaging project with customized machine and dosing technology.
We look forward to your inquiry.
