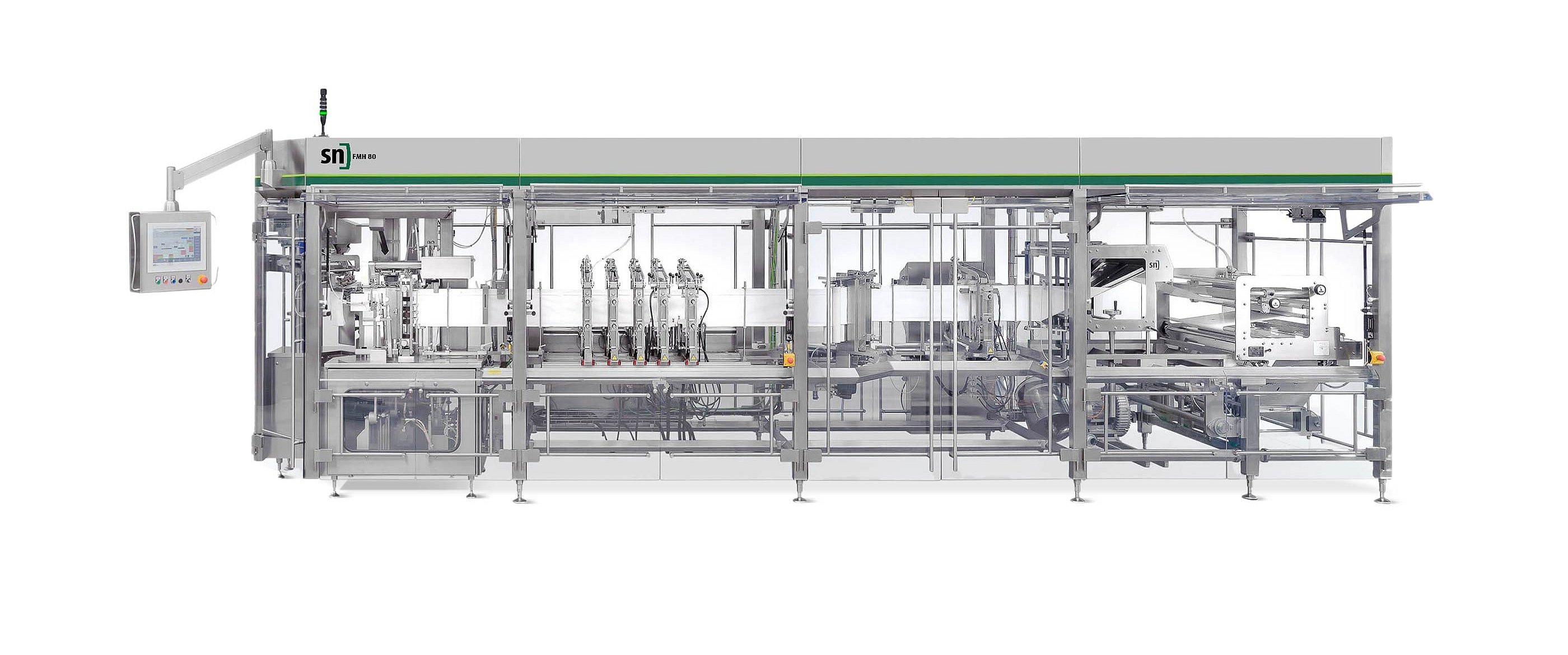

FMH 80 pouch packaging machine

For exceptionally high hygiene requirements

Our FMH 80 horizontal pouch packaging machine is flexible and customizable in a hygienic design. With a large pouch format range and the option to work in simplex and duplex, it is ideal for various applications and output ranges of up to 200 pouches per minute. It can be individually adapted to your requirements and, with its relatively small footprint, is the perfect all-rounder for hygienically demanding pouch packaging.

Of course, it is possible to process recyclable packaging materials, such as mono-materials made of plastic or paper, in a high-quality and efficient manner.

FMH 80

Horizontal form, fill, and seal machine (HFFS) of the Hygienic Series

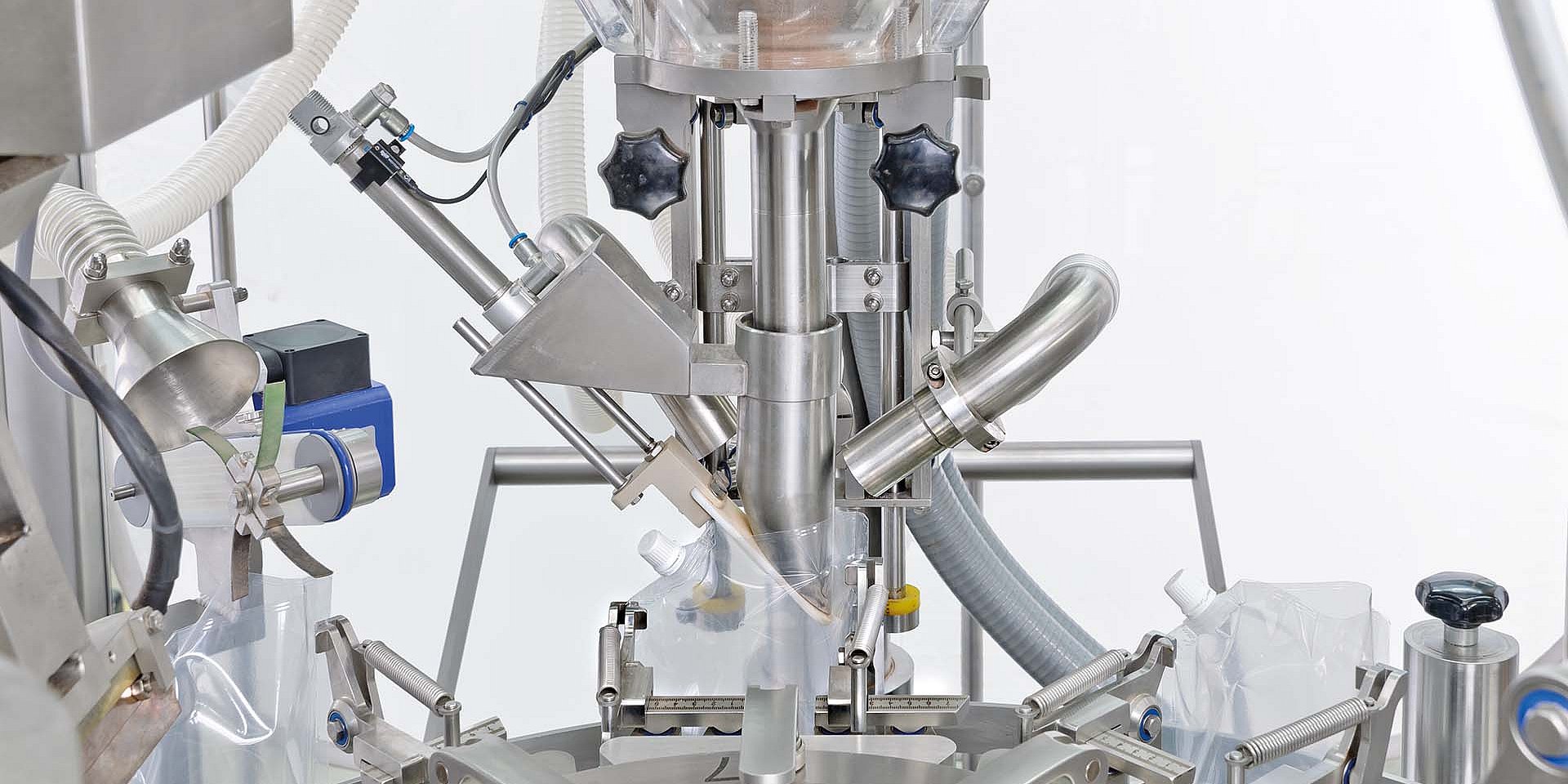

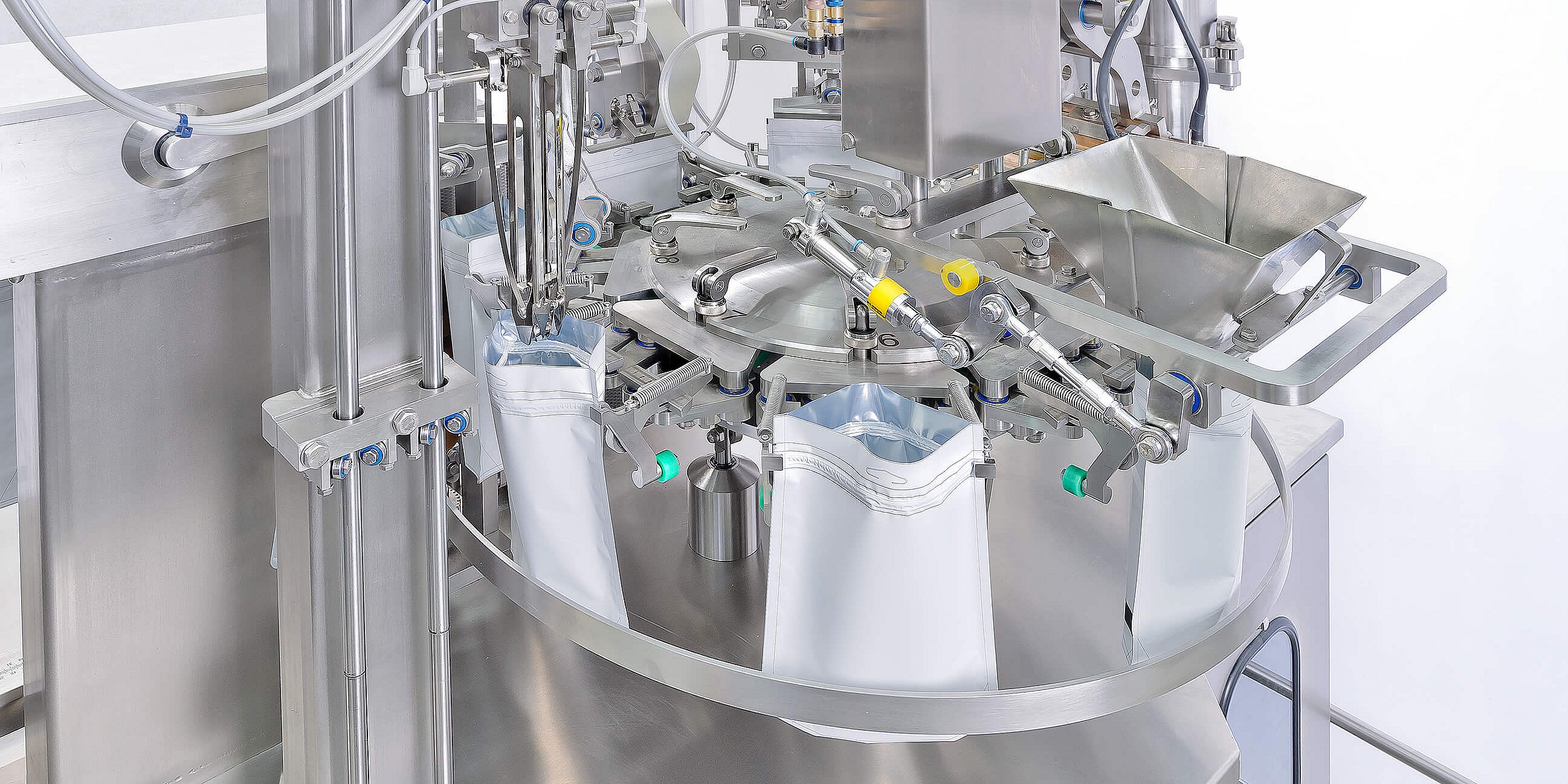

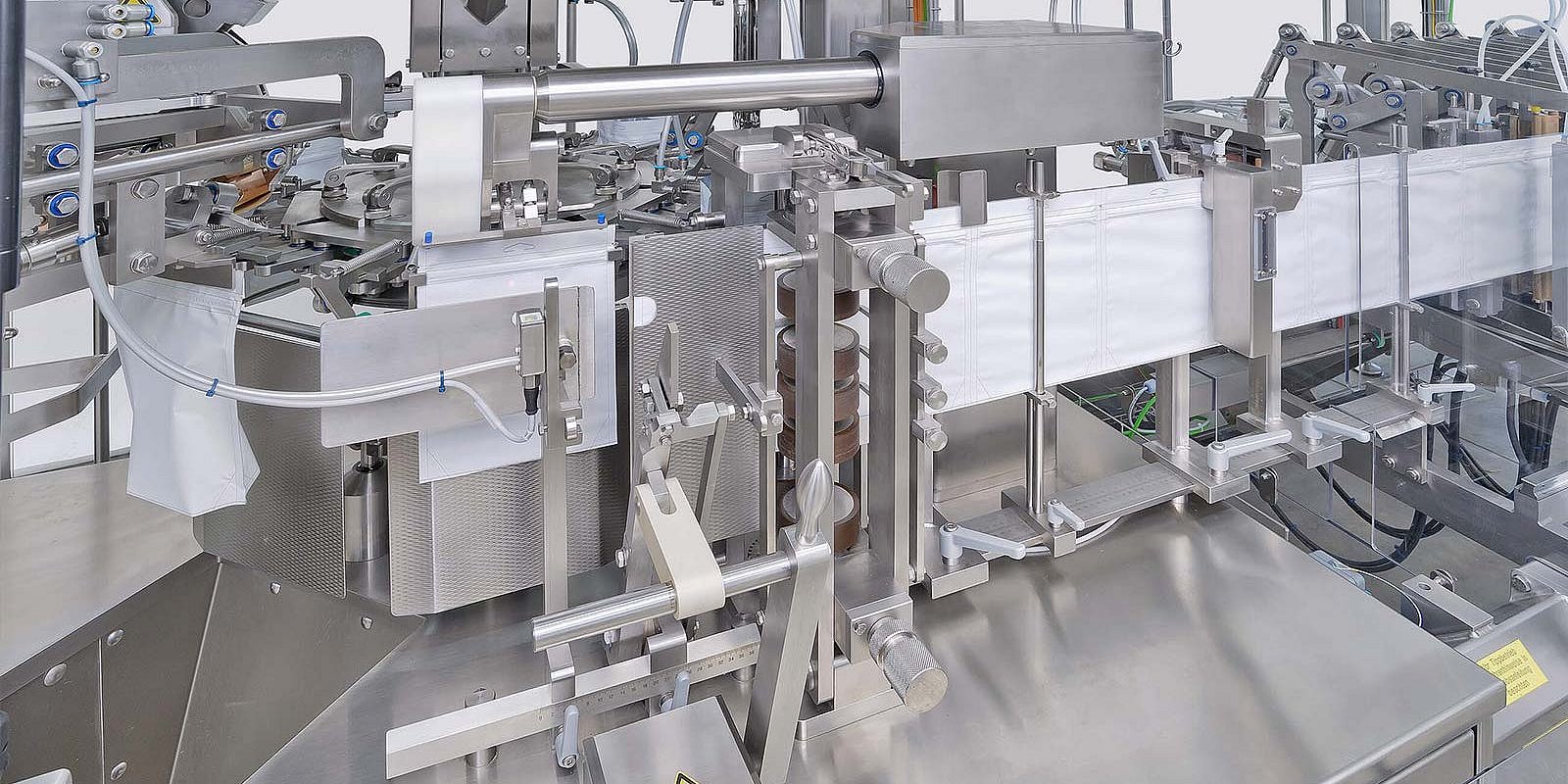

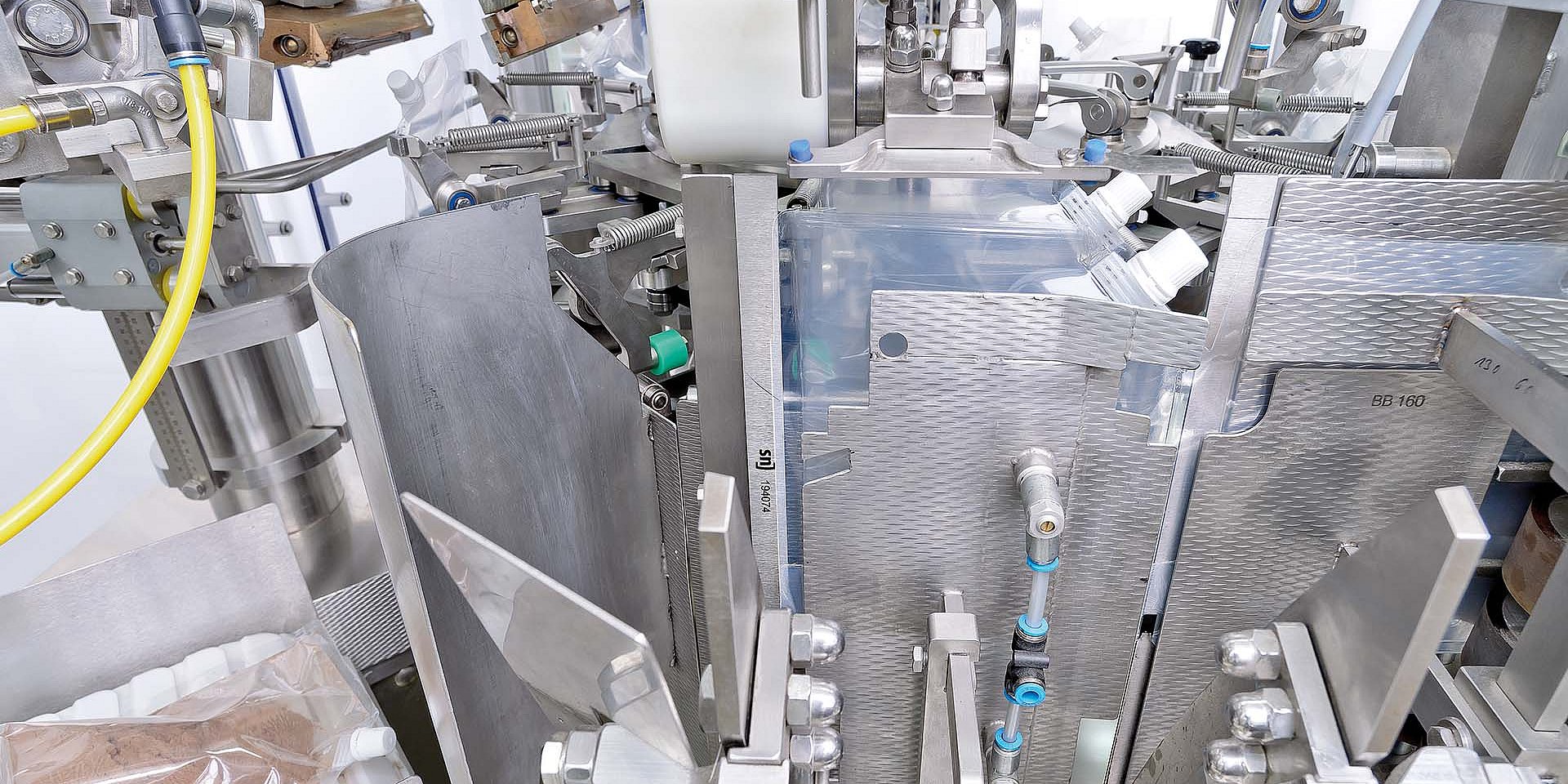

Intermittent working HFFS rotary machine with eight stations in hygienic design for forming, filling, and sealing flat or stand-up pouches from the roll.

Pouch types

3-side or 4-side sealed pouches, bottom fold type pouches, stand-up pouches, corner spout pouches



Application range

dry food, liquid food, pet food, pharmaceuticals, cosmetic & personal care, non-food.

Technical details

Simplex

Pouch size width
50 – 280 mm

Pouch size length
80 – 350 mm

Max. machine output
up to 100 pouches/min.

Power consumption
around 30 kVA

Electricity supply
3 x 400/230V + N + PE, 50/60 HZ

Air consumption
around 550 Nl/min, 6 bar

Machine dimensions L x W x H
around. 6.300 x 1.750 x 2.400 mm

((Data depending on configuration, filling characteristics, and pouch size)

Duplex

Pouch size width
50 – 130 mm

Pouch size length
80 – 250 mm

Max. machine output
up to 200 Pouches/min.

Power consumption
around 30 kVA

Electricity supply
3 x 400/230V + N + PE, 50/60 HZ

Air consumption
around 650 Nl/min, 6 bar

Machine dimensions L x W x H
around 6.300 x 1.750 x 2.400 mm

(Data depending on configuration, filling characteristics, and pouch size)

Standard equipment
  • Hygienic design (e.g. closed cavities)
  • Wash down construction
  • Machine frame in stainless steel

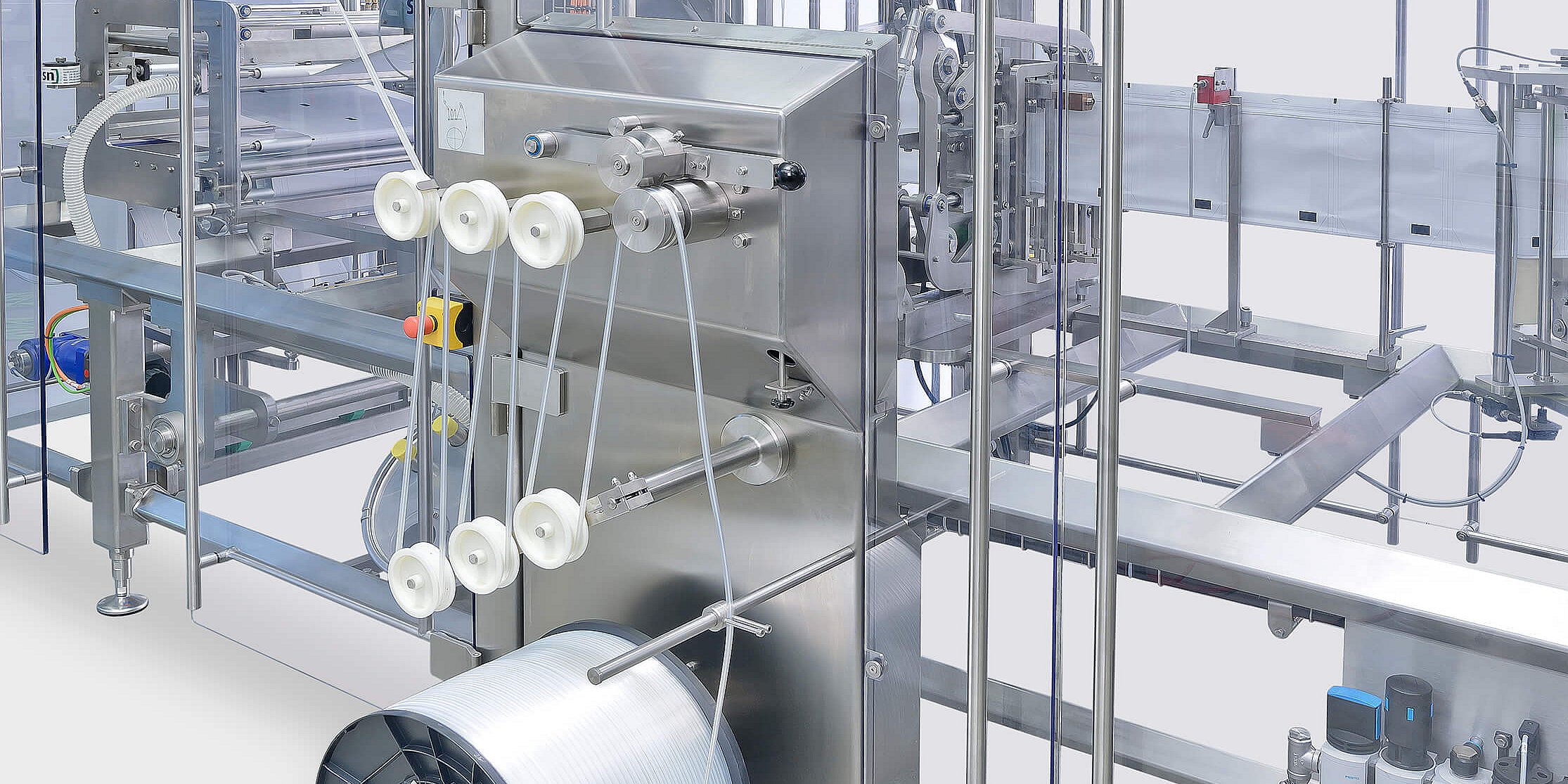

  • Direct driven unwinding and brake funktion

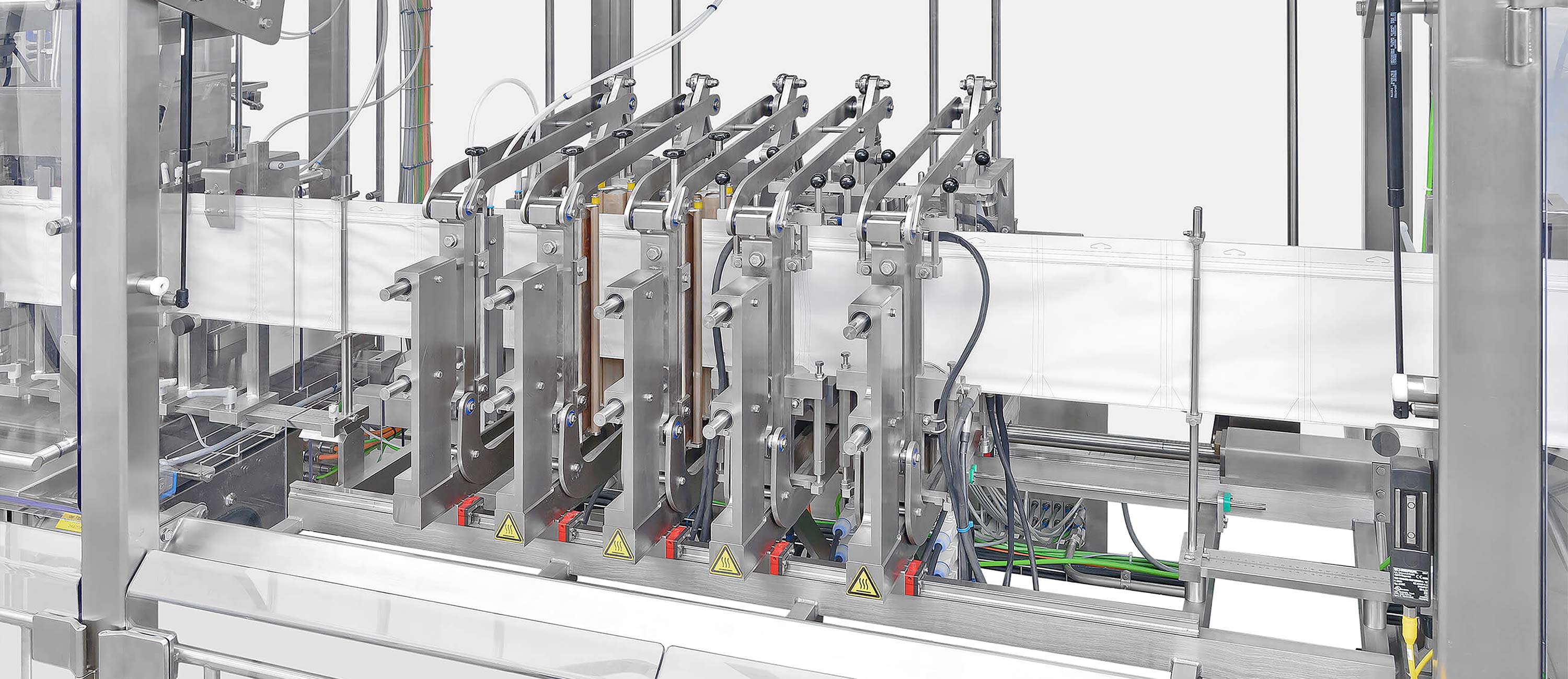

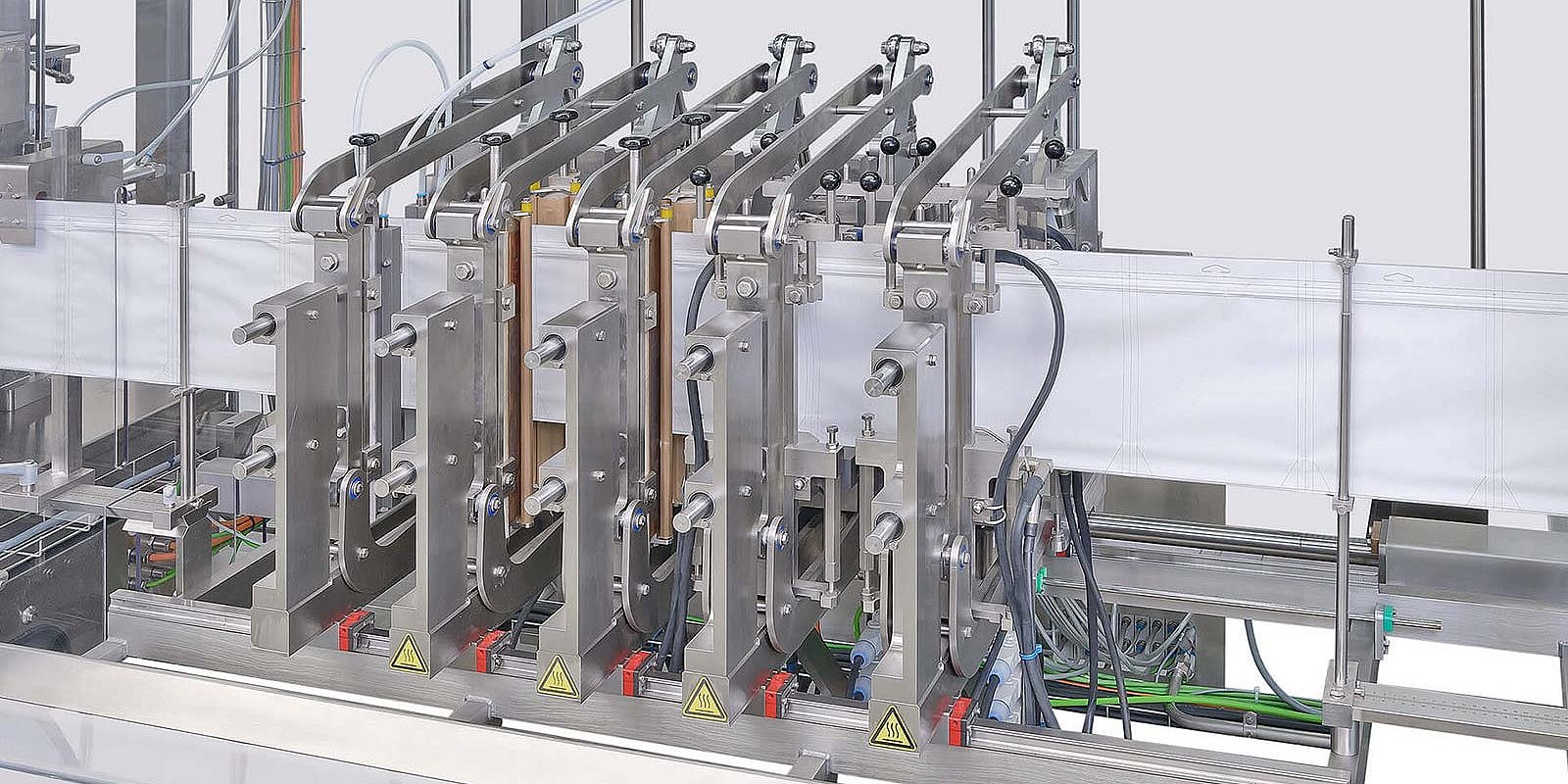

  • Servo driven sealing device
  • Central operation and convenient process control
  • Control: SPS Siemens or Allen Bradley (Rockwell)
  • Remote Service
  • Mirror design (left-hand version)

(further details on request)

Download
Optional equipment
  • Convertibility from simplex to duplex
  • Coding facilities
  • Stand-up pouch device
  • Reclosure systems
  • Recipe management
  • Nitrogen gassing
  • Ultrasonic sealing
  • Servo driven block-adjustment of sealing frames, camera-controlled

(further details on request)

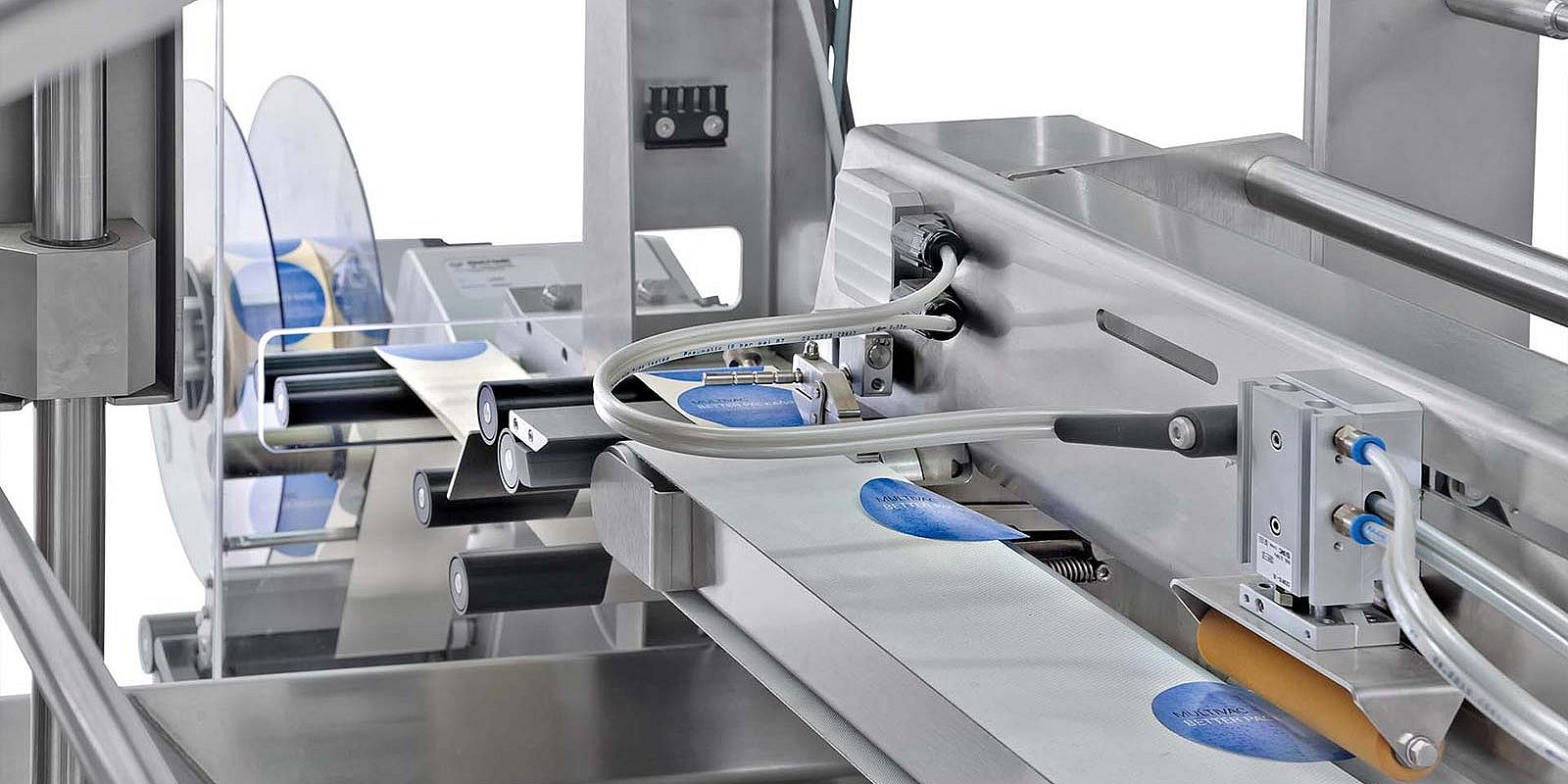

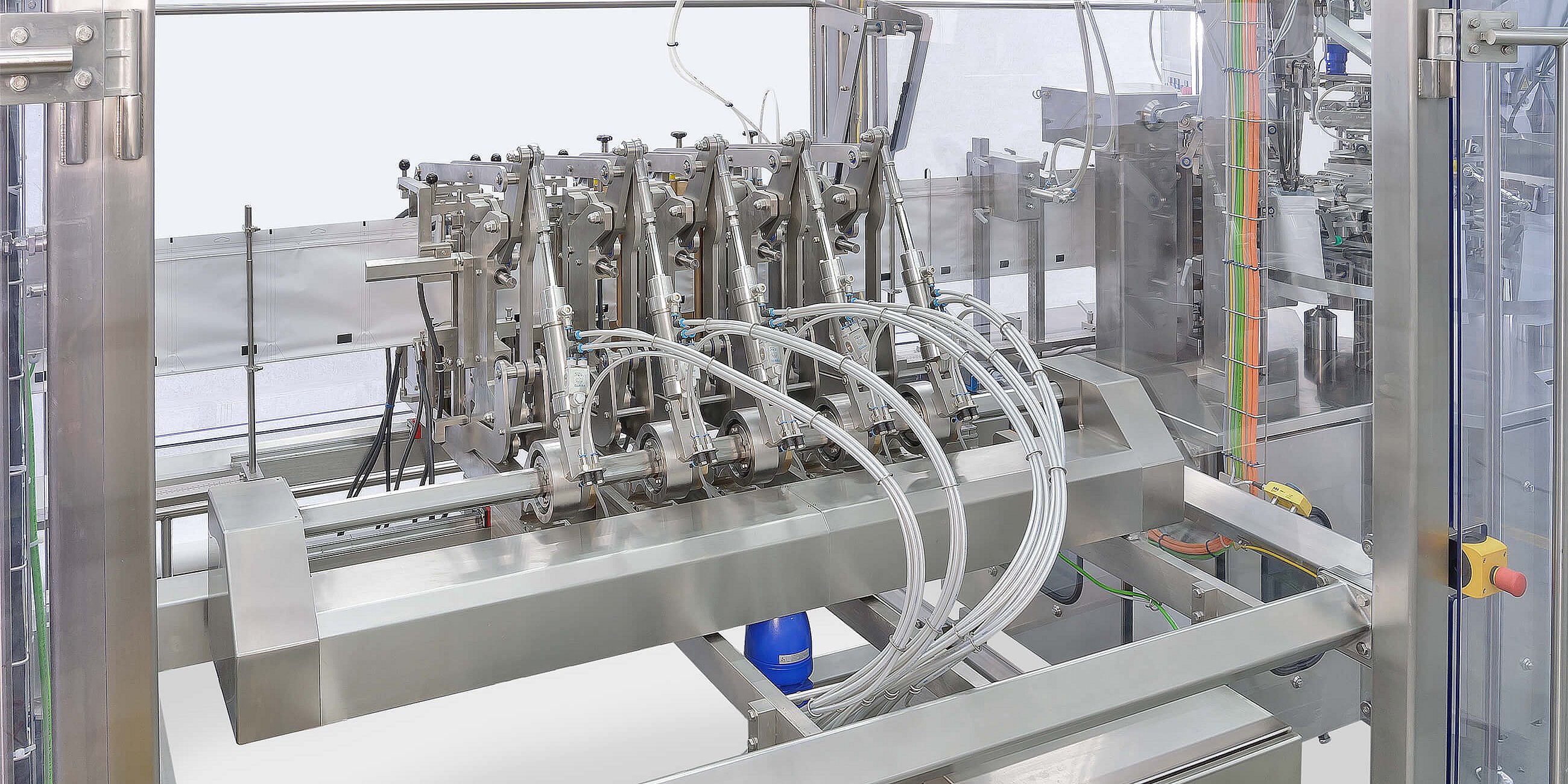

Machine details
