FMH 400 pouch packaging machine

For exceptionally high hygiene requirements

Our FMH 400 horizontal pouch packaging machine is powerful and customizable in a hygienic design. With a restricted pouch format range and the option to work in triplex, it is ideal for long production runs and output ranges of up to 360 pouches per minute. It can adapt to your requirements individually and is the perfect all-rounder for hygienically demanding pouch packaging.

Of course, it is possible to process recyclable packaging materials, such as mono-materials made of plastic or paper, in a high-quality and efficient manner.

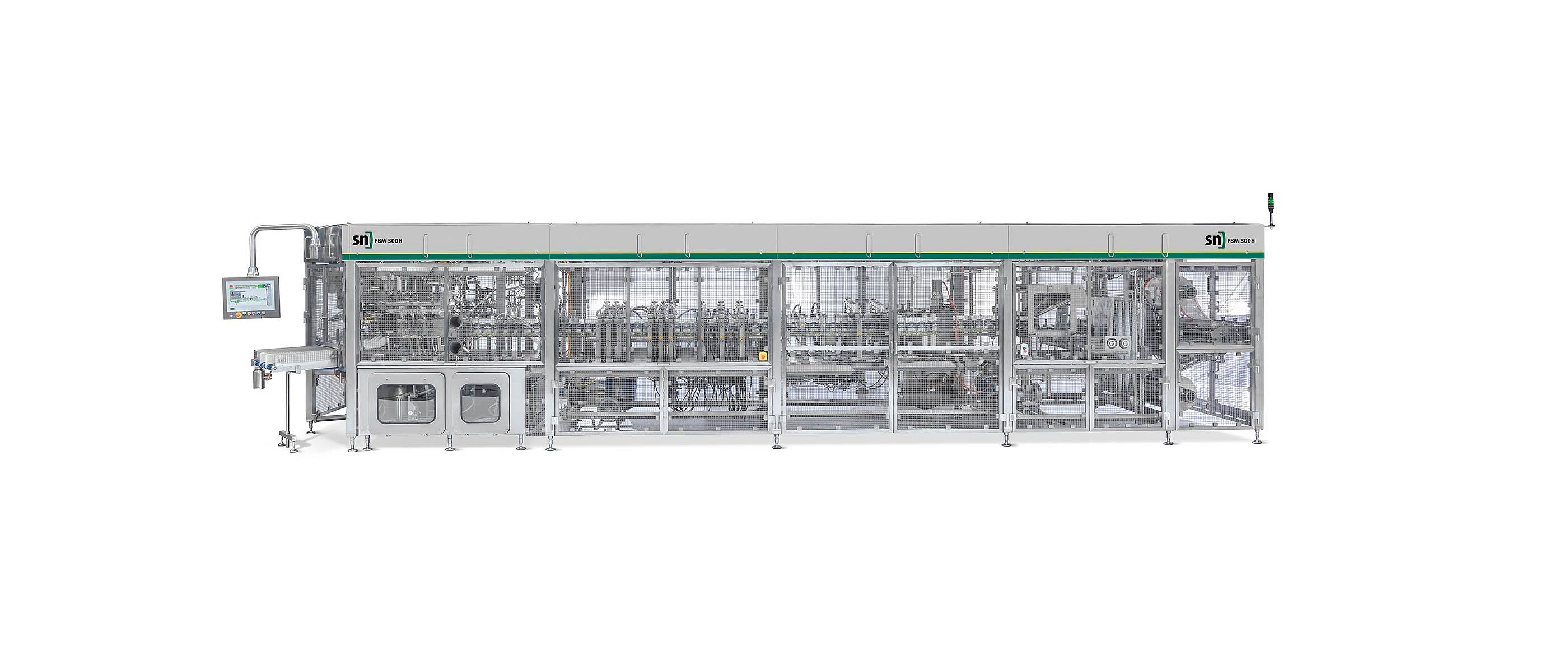

FMH 400

Horizontal form, fill, and seal machine (HFFS) of the Hygienic Series



Intermittent working HFFS rotary machine with eight stations in hygienic design for forming, filling, and sealing flat or stand-up pouches from the roll.

Pouch types

3-side or 4-side sealed pouches, bottom fold type pouches, stand-up pouches



Application range

dry food, liquid food, pet food, pharmaceuticals, cosmetic & personal care, non-food.

Technical details

Quadruplex

Pouch size width
115 – 137 mm

Pouch size length
80 – 350 mm

Max. machine output
up to 360 pouches/min.

Power consumption
about 30 kVA

Electricity supply
3 x 400/230V + N + PE, 50/60 HZ

Air consumption
about 1.000 - 1.500 Nl/min, 6 bar

Machine dimensions L x W x H
about 10.300 x 3.100 x 2.400 mm

(Data depending on configuration, filling characteristics, and pouch size)

Standard equipment
  • High-Hygienic-Design
  • Wash down construction
  • Machine frame in stainless steel

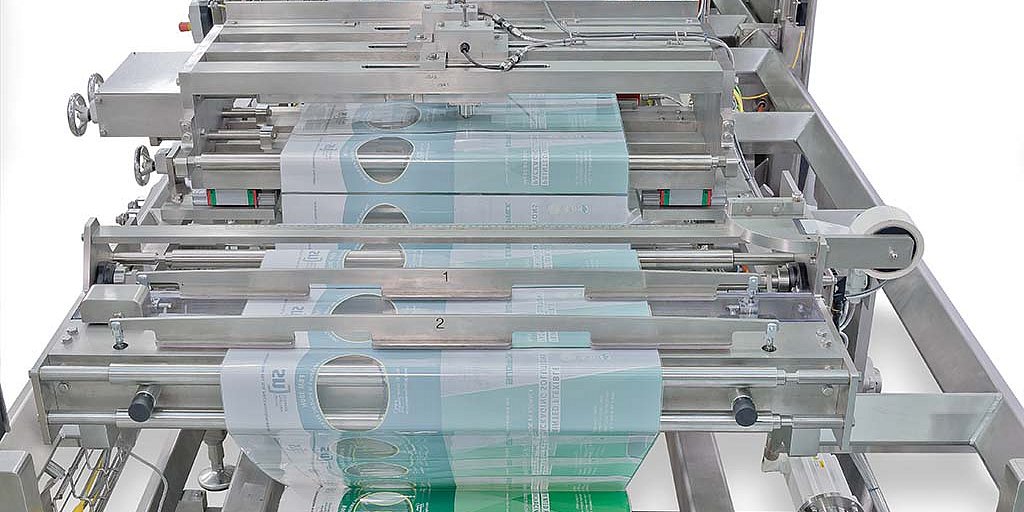

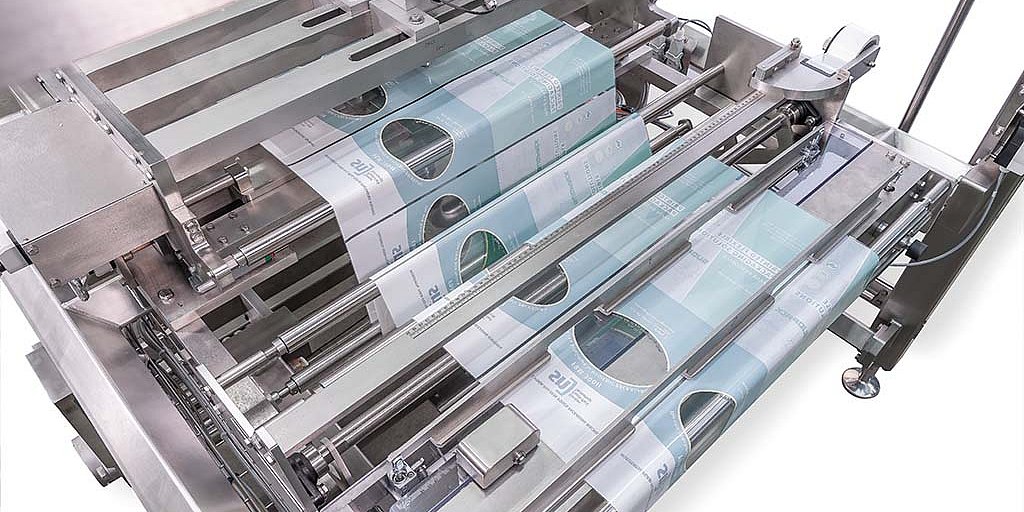

  • Servo-driven unwinding
  • Central operation and comfortable process control
  • Control: SPS Siemens or Allen Bradley (Rockwell)
  • Recipe management

(further details on request)

Optional equipment
  • Rotary table extension from 8 to 10 stations
  • Coding facilities
  • Stand-up pouch device
  • Reclosure systems
  • Automatic gripper adjustment (GripFix)
  • Nitrogen gassing
  • Ultrasonic sealing
  • Mirror design (left-hand version)
  • Remote service

(further details on request)

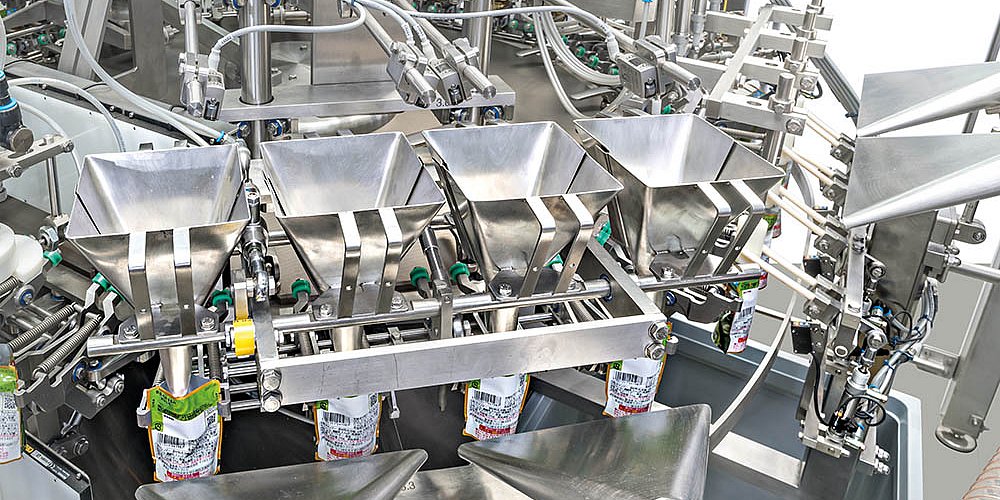

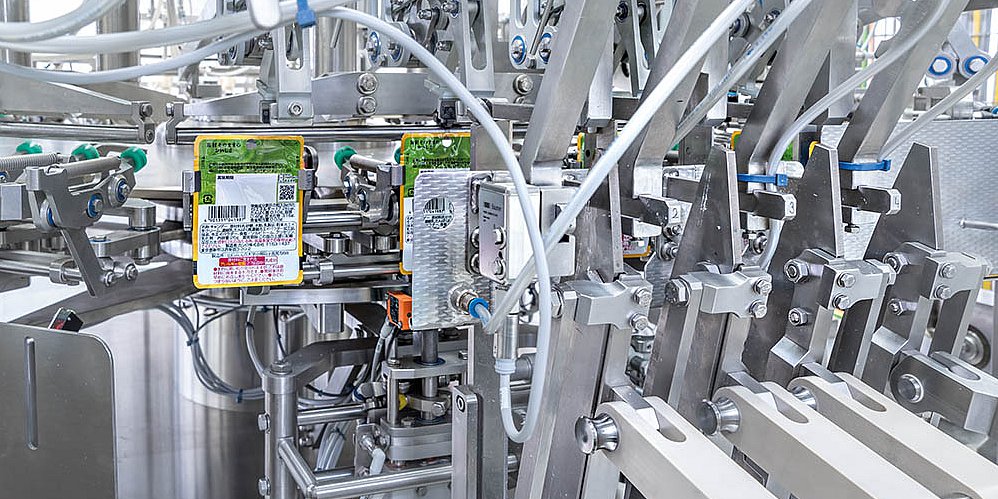

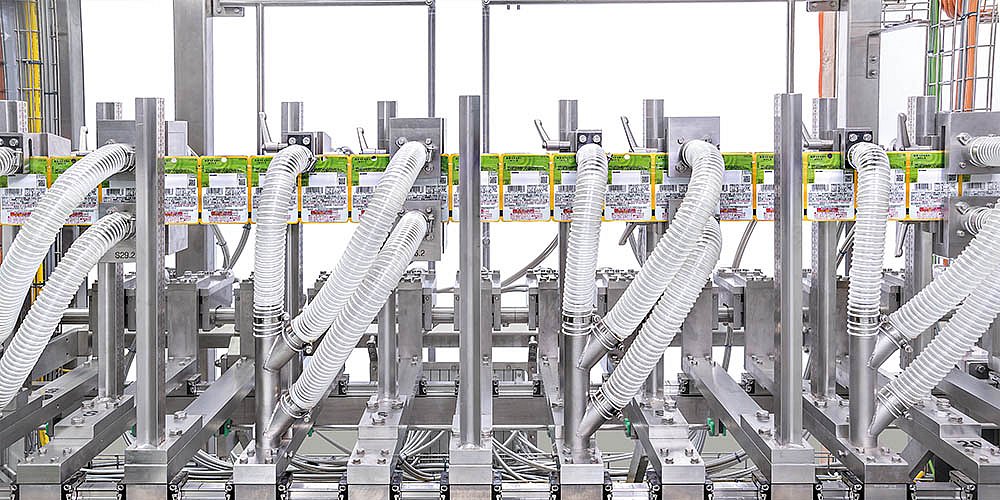

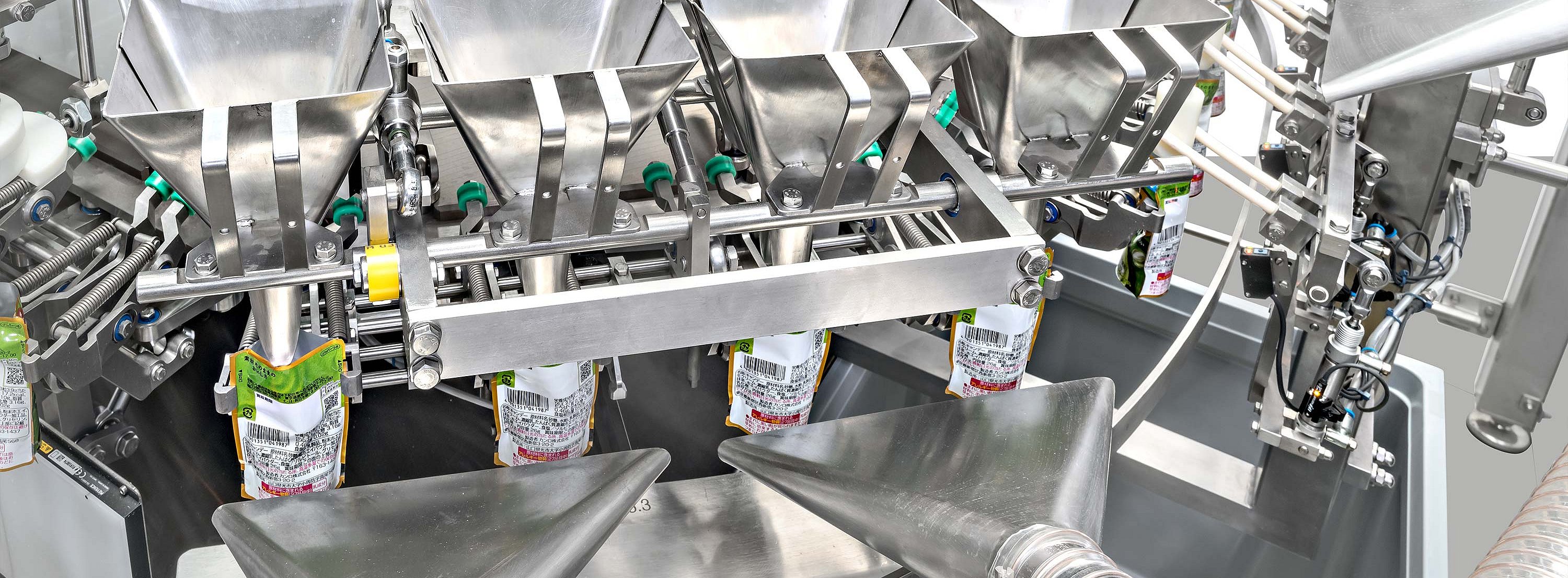

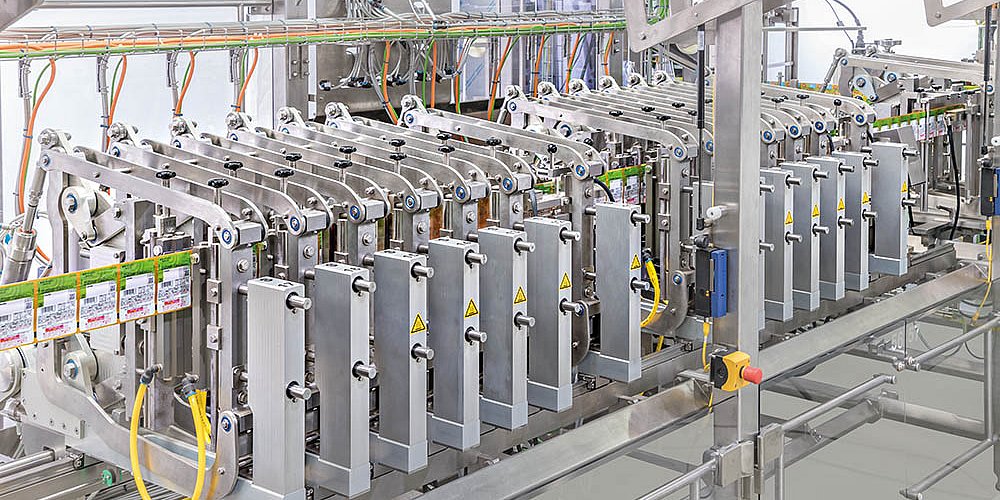

Machine details

Contact

We are happy to support you in your pouch packaging project with customized machine and dosing technology.

We look forward to your inquiry.
