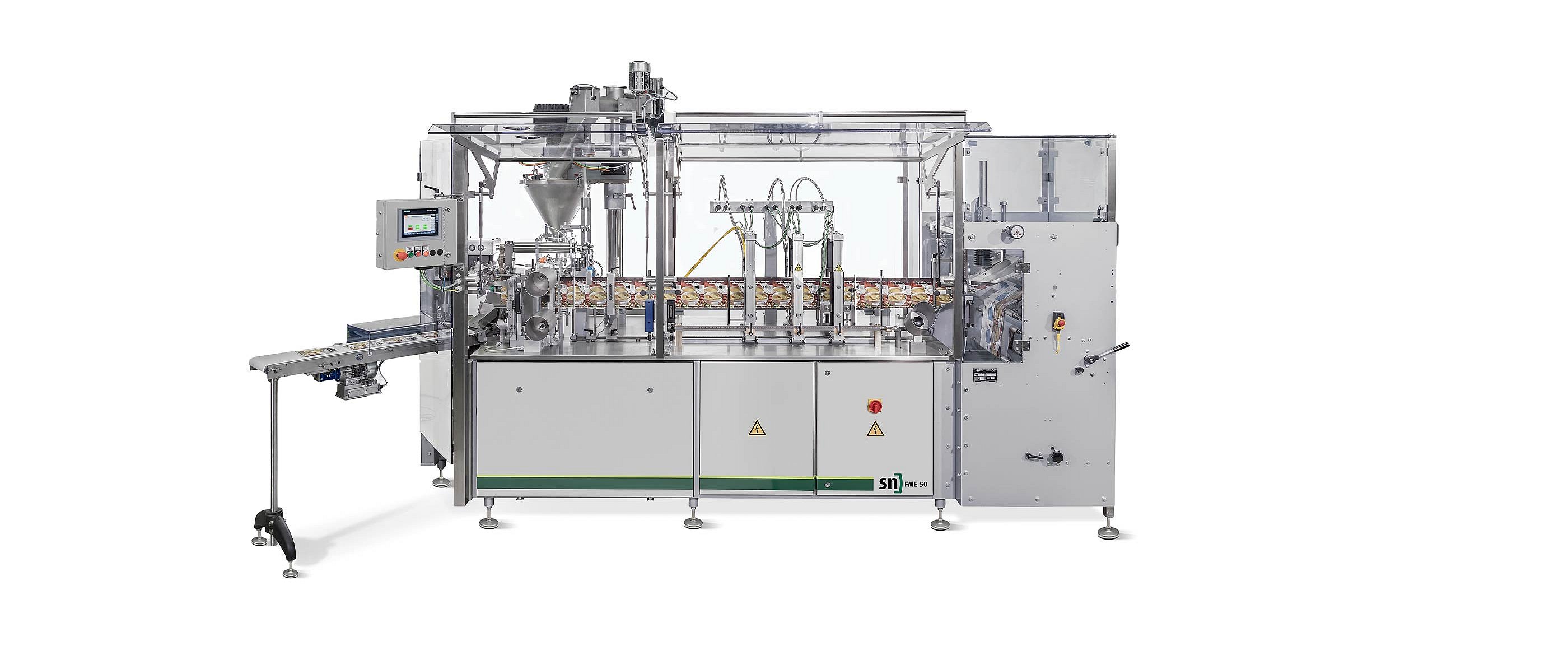

If you mainly want to pack dry products or creams, the machines in the Economic series meet the highest demands with uncomplicated operation on a tiny footprint. With the proven SN technology, the rotary machines form, fill and seal the most common pouch types, such as flat- or stand-up pouches, from the film roll. Reclosure systems, such as zippers, can also be inserted.
In addition to conventional film material, recyclable film, paper, and zippers can also be processed.
Pouch size width
50 – 170 mm
Pouch size length
70 – 210 mm
Max. machine output
up to 80 (100) pouches/min.
Power consumption
ca. 2,0 kVA
Electricity supply
3 x 400/230V + N + PE, 50/60 HZ
Air consumption
ca. 200 - 300 Nl/min., 6 bar
Machine dimensions L x W x H
ca. 3.700 x 1.250 x 2.010 mm
(Data depending on configuration, filling characteristics, and pouch size)
